C3M0045065K - Silicon Carbide Power MOSFET

Wolfspeed

📥 Download Datasheet

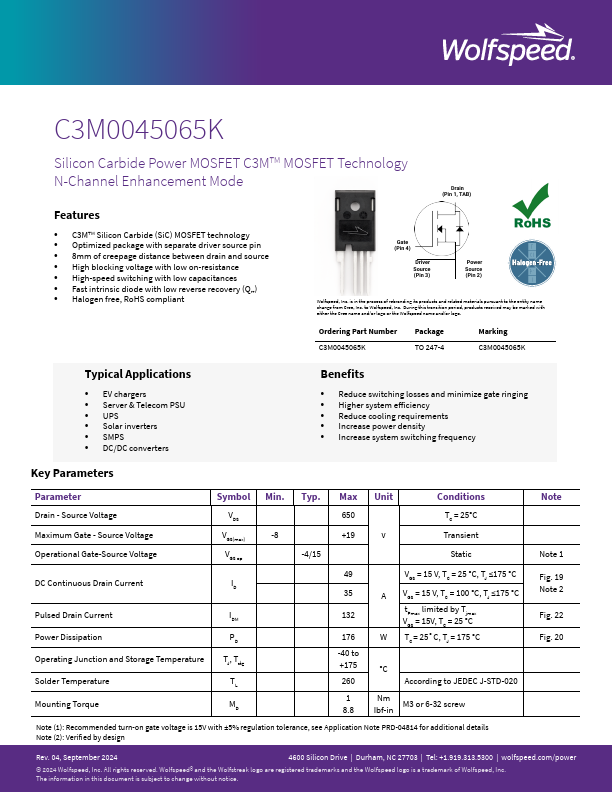

C3M0045065K Datasheet Preview — Preview of C3M0045065K PDF

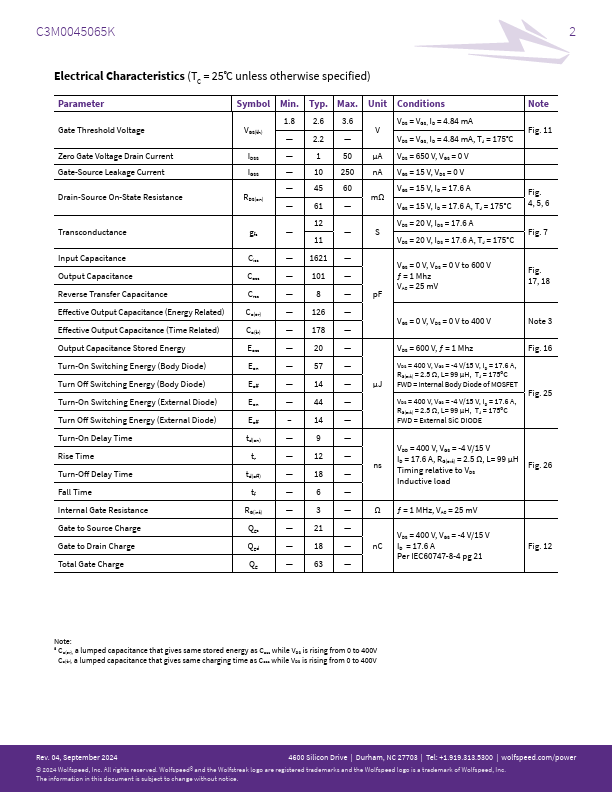

datasheet Preview Page 2

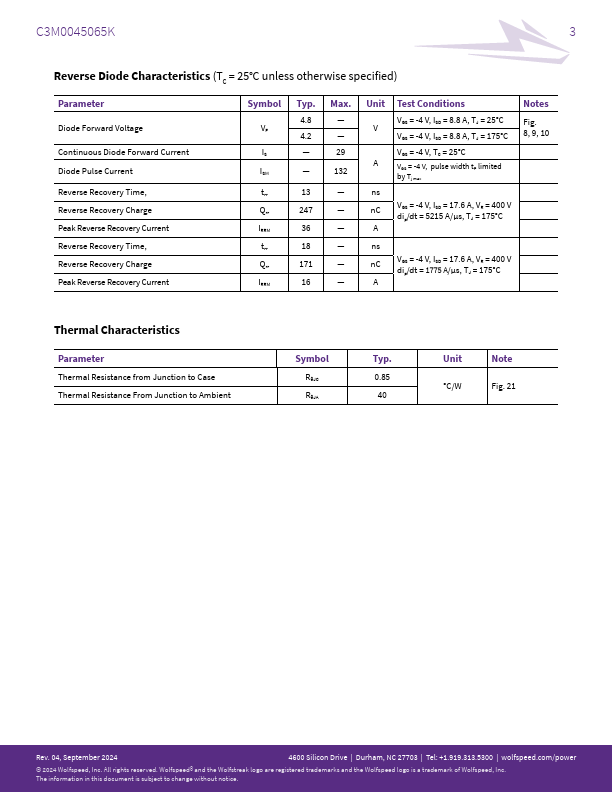

datasheet Preview Page 3

Datasheet Details

Part number	C3M0045065K
Manufacturer	Wolfspeed
File Size	877.41 KB
Description	Silicon Carbide Power MOSFET
Datasheet	C3M0045065K-Wolfspeed.pdf

C3M0045065K Product details

Features

C3MTM Silicon Carbide (SiC) MOSFET technology.
Optimized package with separate driver source pin.
8mm of creepage distance between drain and source.
High blocking voltage with low on-resistance.
High-speed switching with low capacitances.
Fast intrinsic diode with low reverse recovery (Qrr).
Halogen free, RoHS compliant Gate (Pin 4) Driver Source (Pin 3) Power Source (Pin 2) Wolfspeed, Inc. is in the process of rebranding its pro.
