C4D10120A

10A Silicon Carbide Schottky Diode

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
part Wolfspeed C4D10120A DIODE SIL CARB 1200V 33A TO220 DigiKey 1762 500 units
$4.24

C4D10120A Datasheet (1.18 MB)

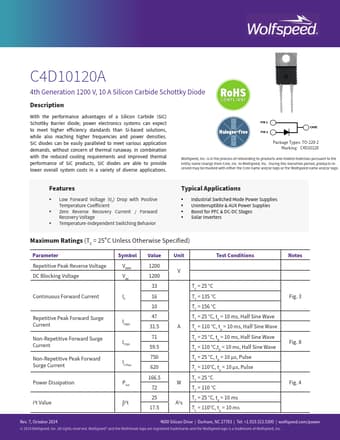

Preview of C4D10120A PDF

Datasheet Details

Part number:

C4D10120A

Manufacturer:

Wolfspeed

File Size:

1.18 MB

Description:

10a silicon carbide schottky diode.

C4D10120A Features

* Low Forward Voltage (VF) Drop with Positive Temperature Coefficient

* Zero Reverse Recovery Current / Forward Recovery Voltage

* Temperature-Independent Switching Behavior Typical Applications

* Industrial Switched Mode Power Supplies

* Uninterruptible & AU

C4D10120A General Description

With the performance advantages of a Silicon Carbide (SiC) Schottky Barrier diode, power electronics systems can expect to meet higher efficiency standards than Si-based solutions, while also reaching higher frequencies and power densities. SiC diodes can be easily paralleled to meet various applic.
