XP10C150M N- & P-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP10C150M Halogen-Free Product N AND P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement ▼ Low Gate Charge ▼ Fast Switching Performanc.
XP10C150 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

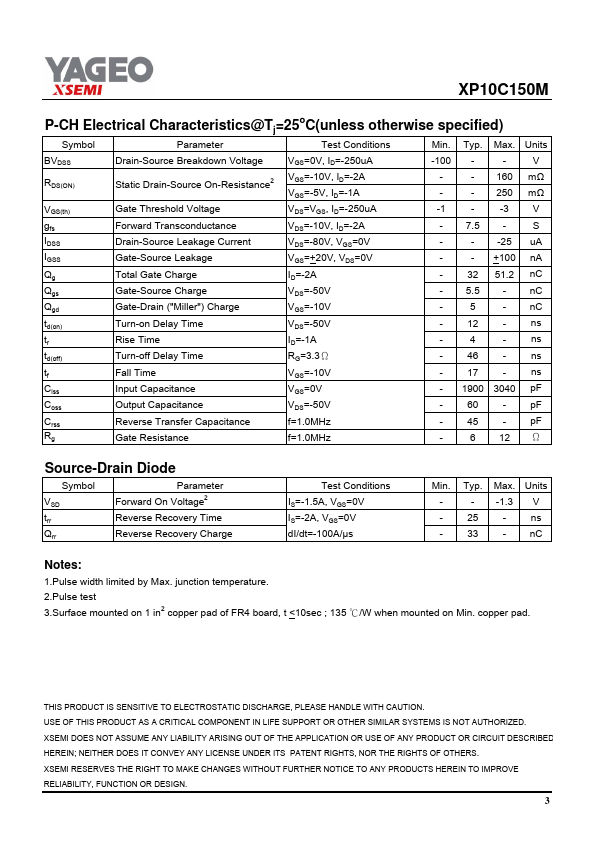

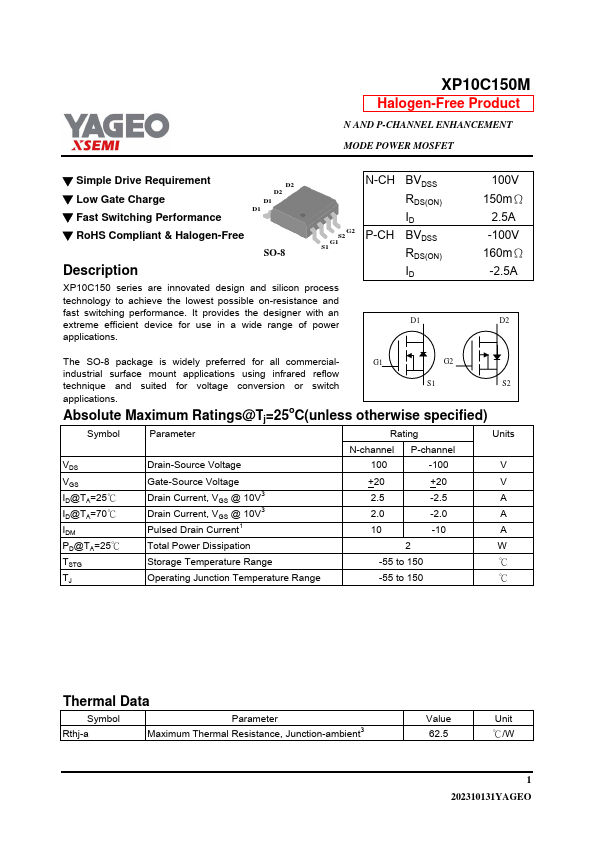

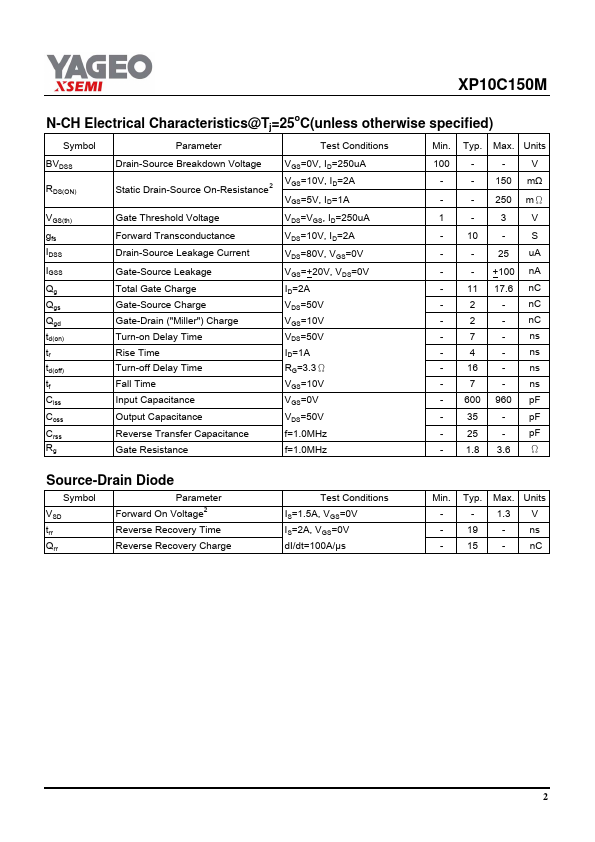

XP10C150M Datasheet Preview — Preview of XP10C150M PDF

Datasheet Specifications

Part number: XP10C150M
Manufacturer: YAGEO
File Size: 277.04 KB
Datasheet: XP10C150M-YAGEO.pdf
Description: N- & P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* N-CH P-CH BVDSS RDS(ON) ID BVDSS RDS(ON) ID D1 100V 150mΩ 2.5A -100V 160mΩ -2.5A D2 The SO-8 package is widely preferred for all commercial- G1 G2 industrial surface mount applications using infrared reflow technique and suited for voltage conversion or switch S1 S2 applications. Absolu
