XP10C155YT - N- & P-CHANNEL ENHANCEMENT MODE POWER MOSFET

📥 Download Datasheet

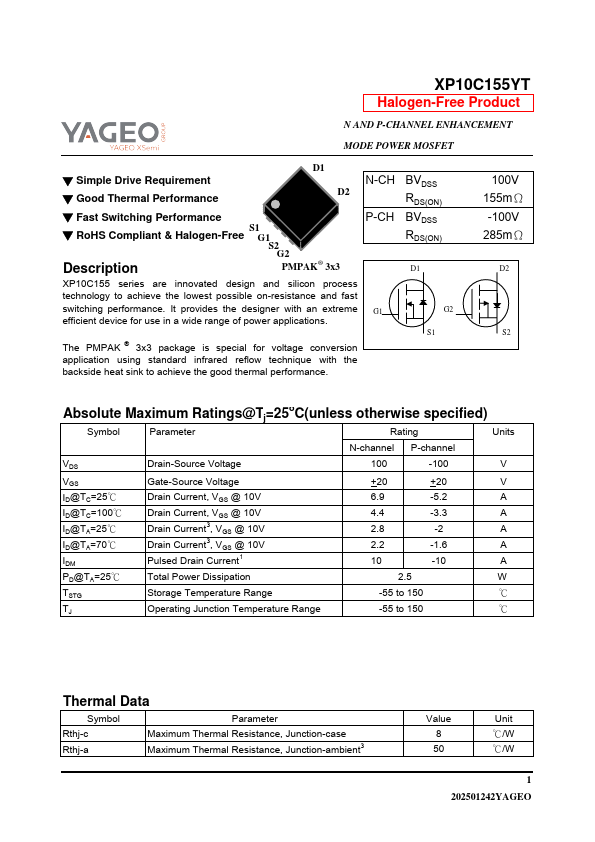

Preview of XP10C155YT PDF

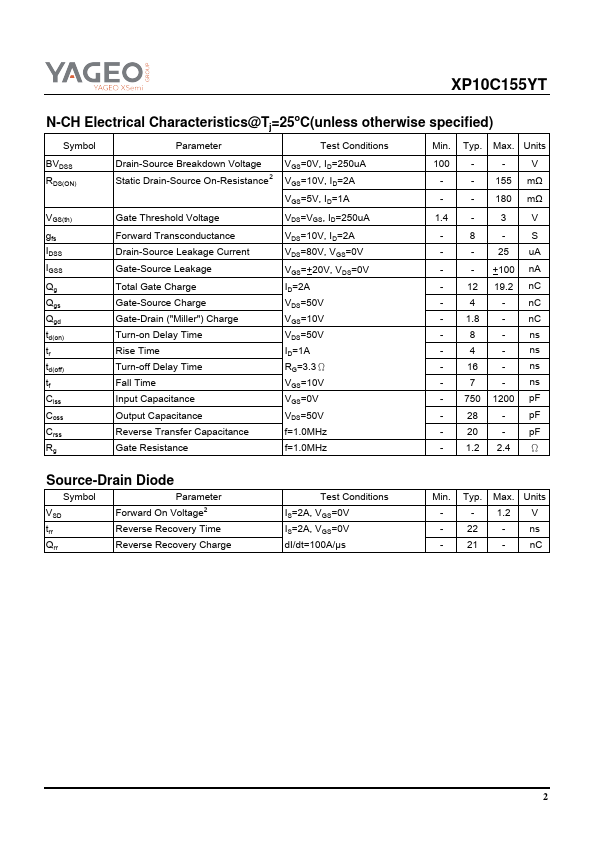

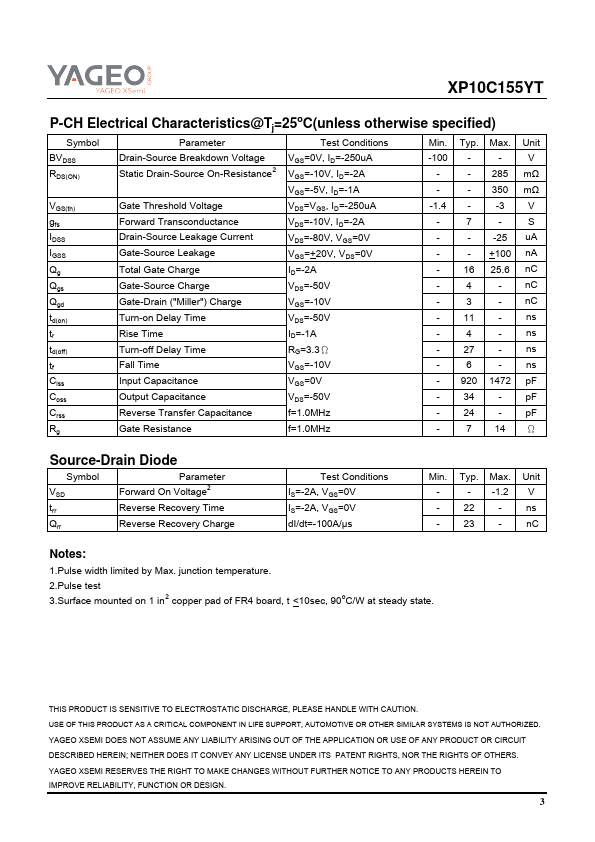

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number XP10C155YT
Manufacturer YAGEO
File Size 738.15 KB
Description N- & P-CHANNEL ENHANCEMENT MODE POWER MOSFET
Datasheet download datasheet XP10C155YT-YAGEO.pdf

XP10C155YT Product details

Description

PMPAK® 3x3 P-CH XP10C155 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.It provides the designer with an extreme G1 efficient device for use in a wide range of power applications.The PMPAK ® 3x3 package is special for voltage conversion application using standard infrared reflow technique with the backside heat sink to achieve the good thermal performance.BVDSS RDS(ON) BVDSS RDS(ON) D1 G2 S1 100V 155
