XP10C150MT N- & P-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP10C150MT Halogen-Free Product N AND P-CHANNEL ENHANCEMENT MODE POWER MOSFET D1 D1 D2 D2 ▼ Simple Drive Requirement ▼ Good Thermal Performance ▼ .
S1 G1 S2 G2 XP10C150 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching perf.

📥 Download Datasheet

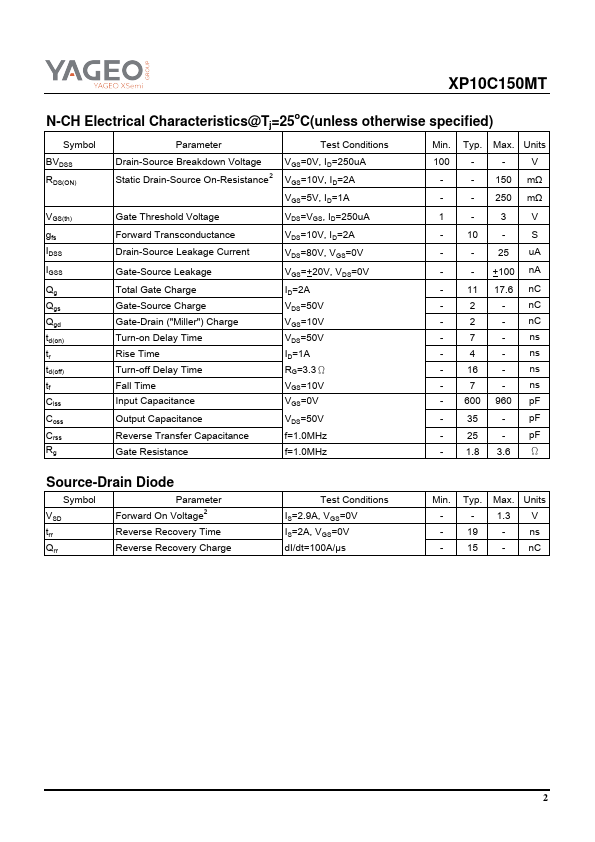

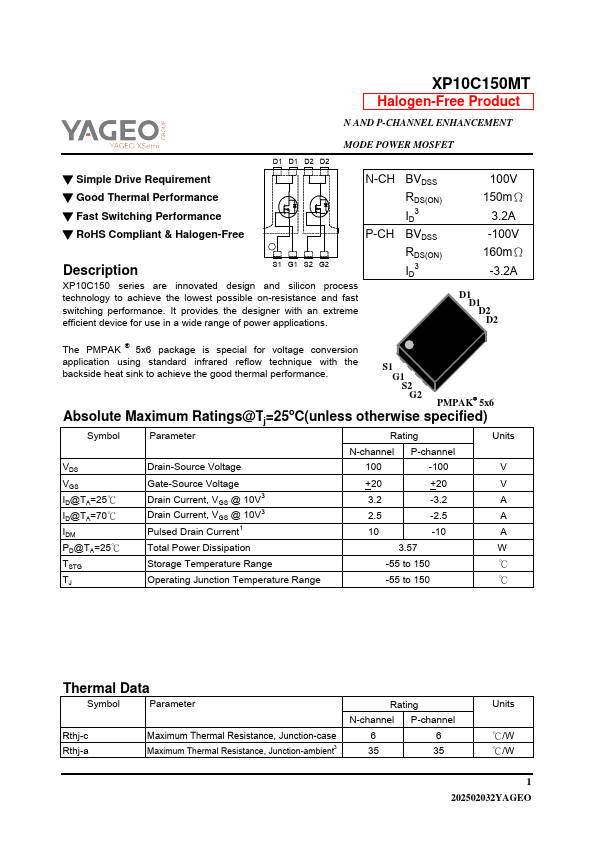

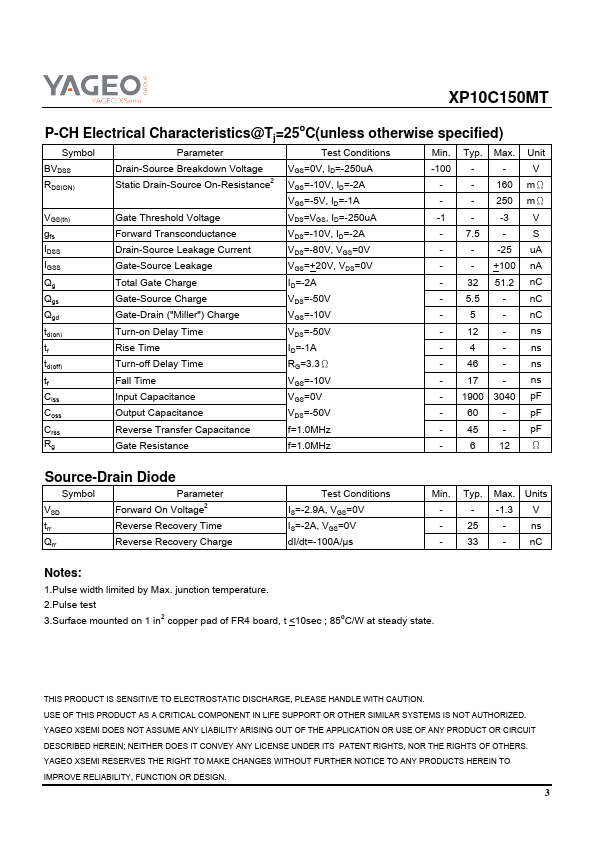

XP10C150MT Datasheet Preview — Preview of XP10C150MT PDF

Datasheet Specifications

Part number: XP10C150MT
Manufacturer: YAGEO
File Size: 732.09 KB
Datasheet: XP10C150MT-YAGEO.pdf
Description: N- & P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* BVDSS RDS(ON) ID3 BVDSS RDS(ON) ID3 100V 150mΩ 3.2A -100V 160mΩ -3.2A D1 D1 D2 D2 The PMPAK ® 5x6 package is special for voltage conversion application using standard infrared reflow technique with the backside heat sink to achieve the good thermal performance. S1 G1 S2 G2 PMPAK® 5x6 Absolu
