XP1504M N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP1504M Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement ▼ Low Gate Charge ▼ Fast Switching Characteristic ▼ R.
XP1504 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

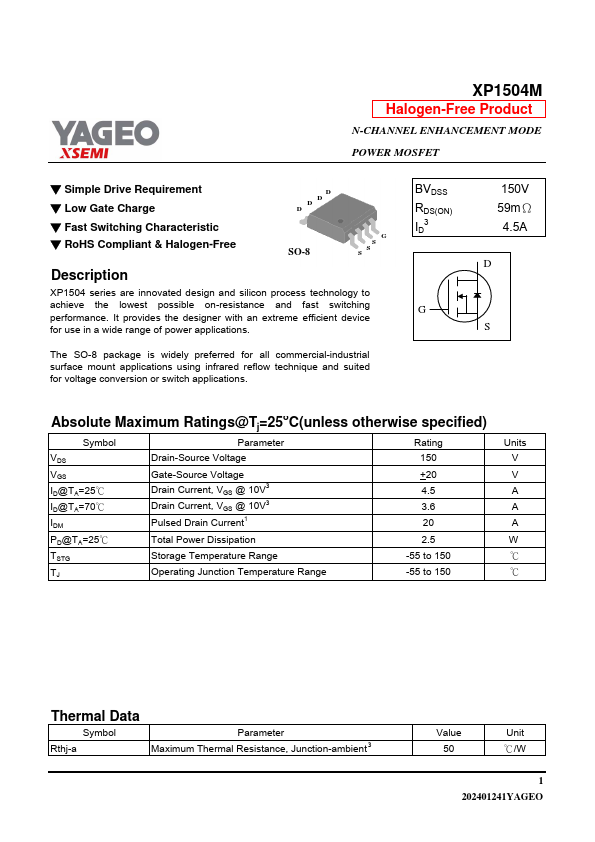

XP1504M Datasheet Preview — Preview of XP1504M PDF

Datasheet Specifications

Part number: XP1504M
Manufacturer: YAGEO
File Size: 245.93 KB
Datasheet: XP1504M-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The SO-8 package is widely preferred for all commercial-industrial surface mount applications using infrared reflow technique and suited for voltage conversion or switch applications. BVDSS RDS(ON) ID3 G 150V 59mΩ 4.5A D S Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Pa
