XP1504YT N-CHANNEL ENHANCEMENT MODE POWER MOSFET

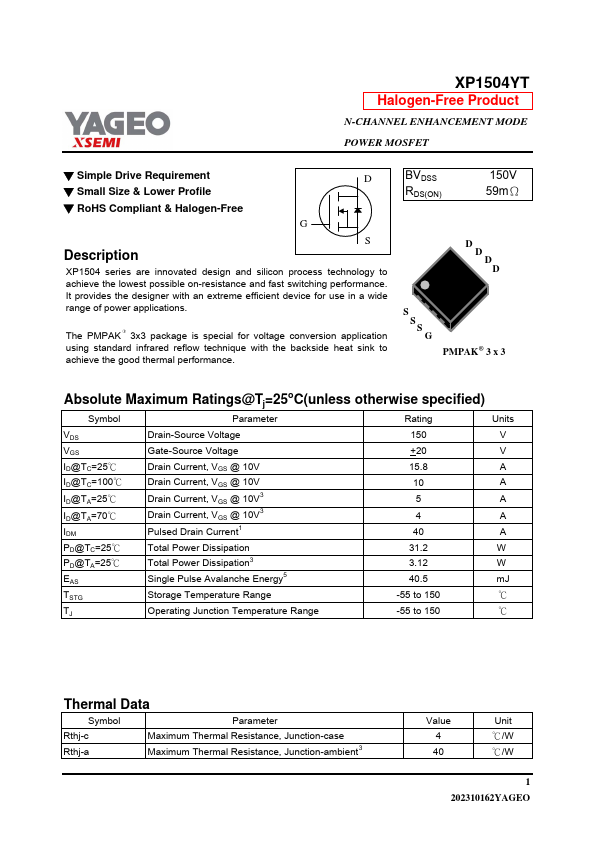

📥 Download Datasheet Datasheet Preview Page 1

Description

XP1504YT Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement D ▼ Small Size & Lower Profile ▼ RoHS Compliant &.
XP1504 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

Preview of XP1504YT PDF

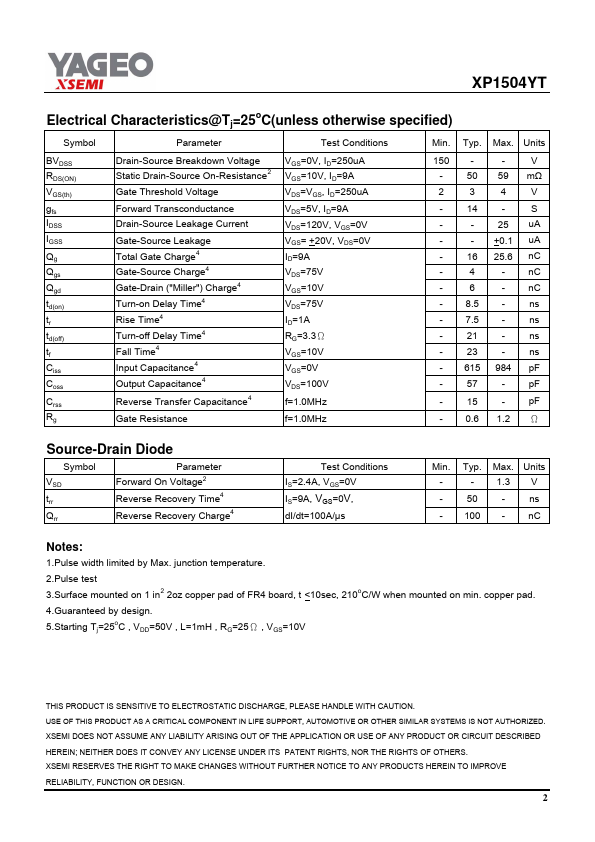

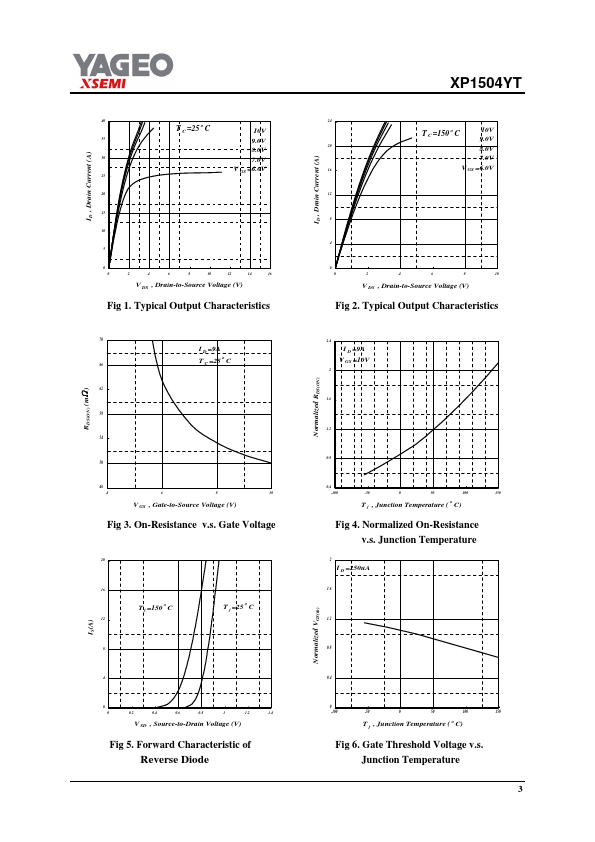

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
XP1504YT
Manufacturer
YAGEO
File Size
461.62 KB
Datasheet
XP1504YT-YAGEO.pdf
Description
N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The PMPAK ® 3x3 package is special for voltage conversion application using standard infrared reflow technique with the backside heat sink to achieve the good thermal performance. BVDSS RDS(ON) 150V 59mΩ D D D D S S S G PMPAK® 3 x 3 Absolute Maximum Ratings@Tj=25oC(unless otherwise specified
