ADS5400 Datasheet - Texas Instruments

ADS5400 1-GSPS Analog-to-Digital Converter

The ADS5400 device is a 12-bit, 1-GSPS analog-todigital converter (ADC) that operates from both a 5-V supply and 3.3-V supply, while providing LVDScompatible digital outputs. The analog input buffer isolates the internal switching of the track and hold from disturbing the signal source. The simple 3.

ADS5400 Features

* 1 1-GSPS Sample Rate

* 12-Bit Resolution

* 2.1 GHz Input Bandwidth

* SFDR = 66 dBc at 1.2 GHz

* SNR = 57.6 dBFS at 1.2 GHz

* 7 Clock Cycle Latency

* Interleave Friendly: Internal Adjustments for Gain, Phase, and Offset

* 1.5-V to 2-V S

ADS5400 Datasheet (2.40 MB)

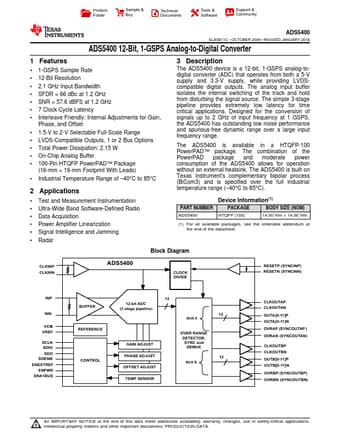

Preview of ADS5400 PDF
ADS5400 Datasheet Preview Page 2 ADS5400 Datasheet Preview Page 3

Datasheet Details

Part number:

ADS5400

Manufacturer:

Texas Instruments ↗

File Size:

2.40 MB

Description:

1-gsps analog-to-digital converter.
