ADS5401 Datasheet - Texas Instruments

ADS5401 Single 12-Bit 800-Msps Analog-to-Digital Converter

The ADS5401 device is a high-linearity singlechannel 12-bit, 800-Msps analog-to-digital converter (ADC) easing front-end filter design for wide bandwidth receivers. The analog input buffer isolates the internal switching of the on-chip track-and-hold from disturbing the signal source as well as prov.

ADS5401 Features

* 1 Single-Channel

* 12-Bit Resolution

* Maximum Clock Rate: 800 Msps

* Low Swing Fullscale Input: 1.0 Vpp

* Analog Input Buffer With High Impedance Input

* Input Bandwidth (3 dB): > 1.2 GHz

* Data Output Interface: DDR LVDS

* Optional 2

ADS5401 Datasheet (1.09 MB)

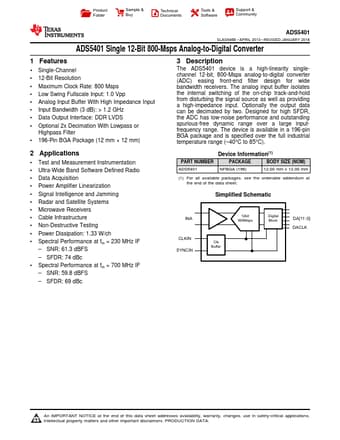

Preview of ADS5401 PDF

Datasheet Details

Part number:

ADS5401

Manufacturer:

Texas Instruments ↗

File Size:

1.09 MB

Description:

Single 12-bit 800-msps analog-to-digital converter.
