ADS5400-SP Datasheet - Texas Instruments

ADS5400-SP 1-GSPS Analog-to-Digital Converter

The ADS5400 is a 12-bit, 1-GSPS analog-to-digital converter (ADC) that operates from both a 5-V supply and 3.3-V supply, while providing LVDS-compatible digital outputs. The analog input buffer isolates the internal switching of the track and hold from disturbing the signal source. The simple 3-stag.

ADS5400-SP Features

* 1 1-GSPS sample rate

* 12-Bit resolution

* 2.1 GHz input bandwidth

* SFDR = 65 dBc at 1.2 GHz

* SNR = 57 dBFS at 1.2 GHZ

* 7 Clock cycle latency

* Interleave friendly: internal adjustments for gain, phase and offset

* 1.5 - 2 VPP Diffe

ADS5400-SP-etcTI.pdf

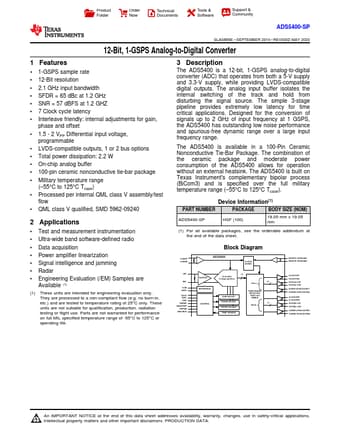

Preview of ADS5400-SP PDF
