ADS5402 Datasheet - Texas Instruments

ADS5402 Dual 12-Bit 800Msps Analog-to-Digital Converter

The ADS5402 is a high linearity dual channel 12-bit, 800 Msps analog-to-digital converter (ADC) easing front end filter design for wide bandwidth receivers. The analog input buffer isolates the internal switching of the on-chip track-and-hold from disturbing the signal source as well as providing a .

ADS5402 Features

* 1

* Dual Channel

* 12-Bit Resolution

* Maximum Clock Rate: 800 Msps

* Low Swing Fullscale Input: 1.0 Vpp

* Analog Input Buffer with High Impedance Input

* Input Bandwidth (3dB): >1.2GHz

* Data Output Interface: DDR LVDS

* Optional 2x De

ADS5402 Datasheet (954.65 KB)

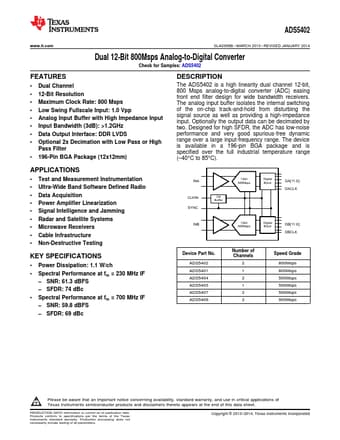

Preview of ADS5402 PDF
