ADS5403 Single Channel 12-Bit 500Msps Analog to Digital Converter

The ADS5403 is a high linearity single channel 12-bit, 500 MSPS analog-to-digital converter (ADC) easing front end filter design for wide bandwidth receivers. The analog input buffer isolates the internal switching of the on-chip track-and-hold from disturbing the signal source as well as providing .

ADS5403 Features

* 1

* Single Channel

* 12-Bit Resolution

* Maximum Clock Rate: 500 Msps

* Low Swing Fullscale Input: 1.0 Vpp

* Analog Input Buffer with High Impedance Input

* Input Bandwidth (3dB): >1.2GHz

* Data Output Interface: DDR LVDS

* 196-Pin BGA

ADS5403 Datasheet (956.52 KB)

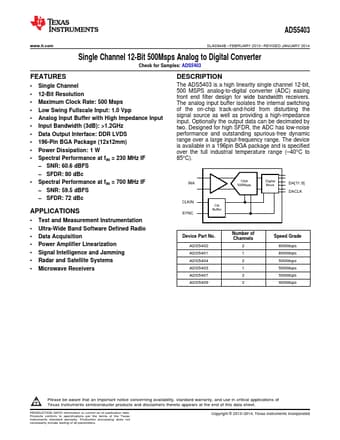

Preview of ADS5403 PDF

Datasheet Details

Part number:

ADS5403

Manufacturer:

Texas Instruments ↗

File Size:

956.52 KB

Description:

Single channel 12-bit 500msps analog to digital converter.
