DAC7573 Datasheet - Texas Instruments

DAC7573 Quad 12-Bit D/A Converter

The DAC7573 is a low-power, quad channel, 12-bit buffered voltage output DAC. Its on-chip precision output amplifier allows rail-to-rail output swing to be achieved. The DAC7573 utilizes an I2C compatible two wire serial interface supporting high-speed interface mode with address support of up to si.

DAC7573 Features

* Micropower Operation: 600 µA at 5 V VDD

* Power-On Reset to Zero

* +2.7-V to +5.5-V Analog Power Supply

* 12-Bit Monotonic

* I2C™ Interface up to 3.4 Mbps

* Data Transmit Capability

* On-Chip Output Buffer Amplifier, Rail-to-Rail Operation

DAC7573-etcTI.pdf

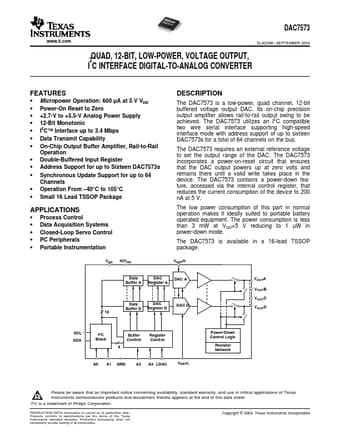

Preview of DAC7573 PDF
DAC7573 Datasheet Preview Page 2 DAC7573 Datasheet Preview Page 3

Datasheet Details

Part number:

DAC7573

Manufacturer:

Texas Instruments ↗

File Size:

1.36 MB

Description:

Quad 12-bit d/a converter.
