DAC7578 D/A Converter

DAC7578 Description

DAC5578 DAC6578 DAC7578 www.ti.com SBAS496A * MARCH 2010 * REVISED AUGUST 2010 8-/10-/12-Bit, Octal-Channel, Ultra-Low Glitch, Volt.
The DAC5578 (8 bit), DAC6578 (10 bit), and DAC7578 (12 bit) are low-power, voltage-output, octal channel, digital-to-analog converters (DACs).

DAC7578 Features

* 1
* 23 Relative Accuracy:
* DAC5578 (8 bit): 0.25LSB INL
* DAC6578 (10 bit): 0.5LSB INL
* DAC7578 (12 bit): 1LSB INL
* Glitch Energy: 0.15nV-s
* Power-On Reset to Zero Scale or Midscale
* Devices in the TSSOP Package Reset to Zero Scale

DAC7578 Applications

* Portable Instrumentation
* Closed-Loop Servo Control
* Process Control
* Data Acquisition Systems DACx578 AVDD Data Buffer H Data Buffer G DAC Register H DAC Register G Data Buffer F DAC Register F Data Buffer E DAC Register E Data Buffer D DAC Register D

📥 Download Datasheet

Preview of DAC7578 PDF

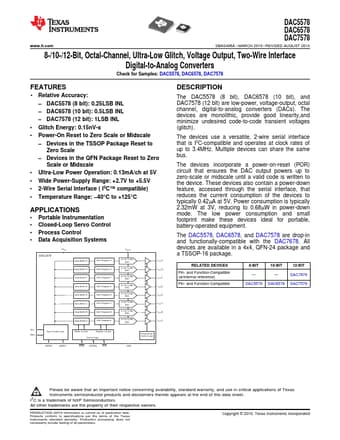

datasheet Preview Page 2 datasheet Preview Page 3
