DS90C032B

LVDS Quad CMOS Differential Line Receiver

DS90C032B Features

* 1

* 2 >155.5 Mbps (77.7 MHz) Switching Rates

* Accepts Small Swing (350 mV) Differential Signal Levels

* High Impedance LVDS Inputs with Power Down

* Ultra Low Power Dissipation

* 600 ps Maximum Differential Skew (5V, 25°C)

* 6.0 ns Maximum Propagation

DS90C032B General Description

The DS90C032B is a quad CMOS differential line receiver designed for applications requiring ultra low power dissipation and high data rates. The device supports data rates in excess of 155.5 Mbps (77.7 MHz) and uses Low Voltage Differential Signaling (LVDS) technology. The DS90C032B accepts low volt.

DS90C032B Datasheet (1.09 MB)

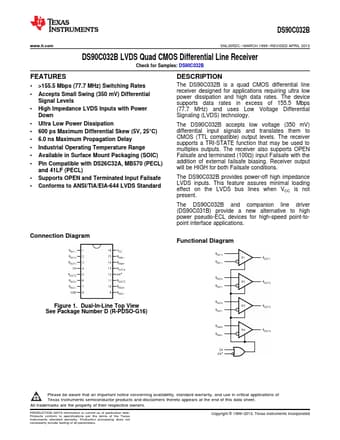

Preview of DS90C032B PDF

Datasheet Details

Part number:

DS90C032B

Manufacturer:

Texas Instruments ↗

File Size:

1.09 MB

Description:

lvds quad cmos differential line receiver.
DS90C032B www.ti.com SNLS052C

* MARCH 1999

* REVISED APRIL 2013 DS90C032B LVDS Quad CMOS Differential Line Receiver Check for Sampl.
