LM61

SOT-23 or TO-92 Temperature Sensor

LM61 Features

* 1 Calibrated Linear Scale Factor of 10 mV/°C

* Rated for Full Temperature Range (

* 30° to 100°C)

* Suitable for Remote Applications

* UL Recognized Component

* ±2°C or ±3°C Accuracy at 25°C (Maximum)

* ±3°C Accuracy for

* 25°C to 85°C (M

LM61 General Description

The LM61 device is a precision, integrated-circuit temperature sensor that can sense a

*30°C to 100°C temperature range while operating from a single 2.7‑V supply. The output voltage of the LM61 is linearly proportional to temperature (10 mV/°C) and has a DC offset of 600 mV. The offset allo.

LM61 Datasheet (1.53 MB)

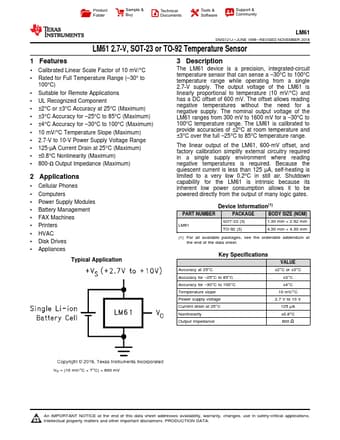

Preview of LM61 PDF

Datasheet Details

Part number:

LM61

Manufacturer:

Texas Instruments ↗

File Size:

1.53 MB

Description:

Sot-23 or to-92 temperature sensor.
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community LM61 SNIS121J

* JUNE 1999

* REVISED NOVEMBER.
