SN54LS147 10-LINE TO 4-LINE AND 8-LINE TO 3-LINE PRIORITY ENCODERS

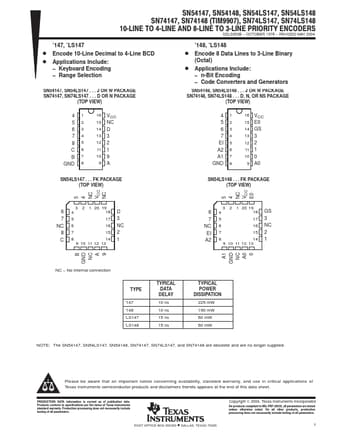

SN54147, SN54148, SN54LS147, SN54LS148 SN74147, SN74148 (TIM9907), SN74LS147, SN74LS148 10ĆLINE TO 4ĆLINE AND 8ĆLINE TO 3ĆLINE PRIORITY ENCODERS SDLS053B OCTOBER 1976 REVISED MAY 2004 ’147, ’LS147 D Encode 10-Line Decimal to 4-Line BCD D Applications Include: Keyboard Encoding Range Selection SN54147, SN54LS147 . . . J OR W PACKAGE SN74147, SN74LS147 . . . D OR N PACKAGE (TOP VIEW) ’148, ’LS148 D Encode 8 Data Lines to 3-Line Binary (Octal) D Application.

SN54LS147 Datasheet (1.12 MB)

Preview of SN54LS147 PDF
SN54LS147 Datasheet Preview Page 2 SN54LS147 Datasheet Preview Page 3

Datasheet Details

Part number:

SN54LS147

Manufacturer:

Texas Instruments ↗

File Size:

1.12 MB

Description:

10-line to 4-line and 8-line to 3-line priority encoders.
