TPS22918 - On-Resistance Load Switch

Texas Instruments

The TPS22918 by Texas Instruments is a On-Resistance Load Switch. Below is the official datasheet preview.

📥 Download Datasheet

TPS22918 On-Resistance Load Switch by Texas Instruments - Datasheet Preview — Official preview page of the TPS22918 On-Resistance Load Switch datasheet (Texas Instruments).

Datasheet Details

Part number	TPS22918
Manufacturer	Texas Instruments
File Size	1.41 MB
Description	On-Resistance Load Switch
Datasheet	TPS22918-etcTI.pdf

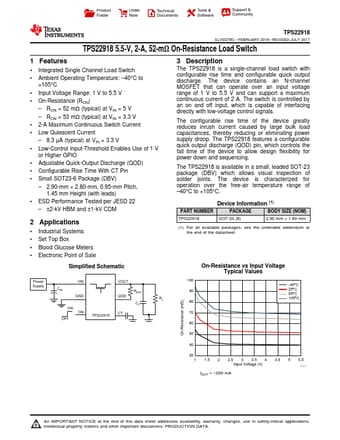

Additional preview pages of the TPS22918 datasheet.

TPS22918 Product details

Description

The TPS22918 is a single-channel load switch with configurable rise time and configurable quick output discharge.

Features

1 Integrated Single Channel Load Switch.
Ambient Operating Temperature:.
40°C to +105°C.
Input Voltage Range: 1 V to 5.5 V.
On-Resistance (RON).
RON = 52 mΩ (typical) at VIN = 5 V.
RON = 53 mΩ (typical) at VIN = 3.3 V.
2-A Maximum Continuous Switch Current.
Low Quiescent Current.
8.3 µA (typical) at VIN = 3.3 V.
Low-Control Input-Threshold Enables Use of 1 V or Higher GPIO.
Adjustable Quick.
