2N7002HS - dual N-channel Trench MOSFET

2N7002HS Description

2N7002HS 60 V, dual N-channel Trench MOSFET 15 December 2021 Product data sheet 1.General .
Dual N-channel enhancement mode Field-Effect Transistor (FET) in a very small SOT363 (SC-88) Surface-Mounted Device (SMD) plastic package using Trench.

2N7002HS Features

* Logic-level compatible
* Very fast switching
* Trench MOSFET technology

2N7002HS Applications

* Relay driver
* High-speed line driver
* Low-side load switch
* Switching circuits 4. Quick reference data Table 1. Quick reference data Symbol Parameter Conditions Min Typ Max Unit Per transistor VDS drain-source voltage VGS gate-source voltage ID drain

📥 Download Datasheet

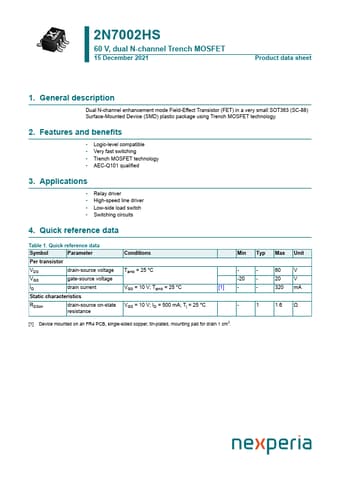

Preview of 2N7002HS PDF
