74AVC2T245 Datasheet, Transceiver, nexperia

74AVC2T245 Features

  • Transceiver
  • Wide supply voltage range:
      – VCC(A): 0.8 V to 3.6 V
      – VCC(B): 0.8 V to 3.6 V
  • Complies with JEDEC standards:
      – JESD8-1

PDF File Details

Part number:

74AVC2T245

Manufacturer:

nexperia ↗

File Size:

246.18kb

Download:

📄 Datasheet

Description:

2-bit dual supply translating transceiver. The 74AVC2T245 is a 2-bit, dual supply transceiver that enables bidirectional level translation. The device can be used as two 1-bit

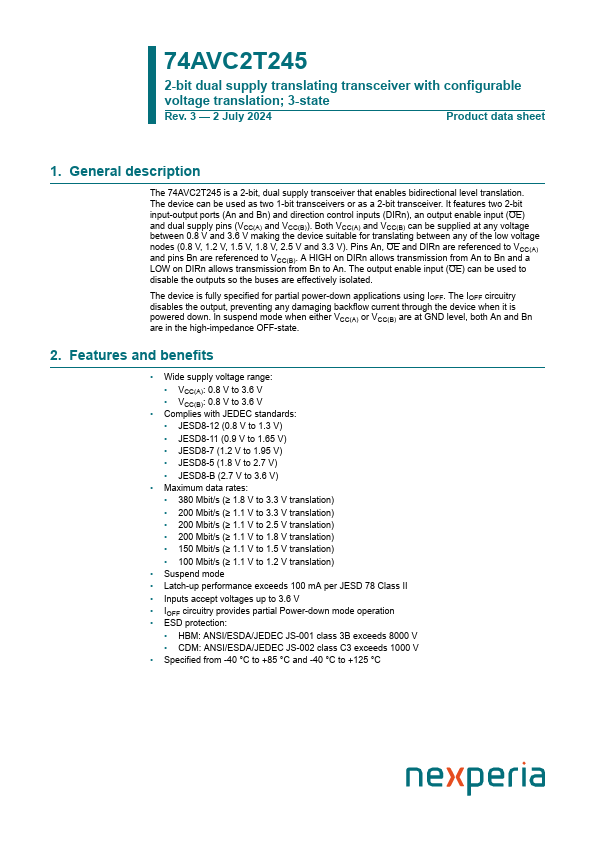

Datasheet Preview: 74AVC2T245 📥 Download PDF (246.18kb)

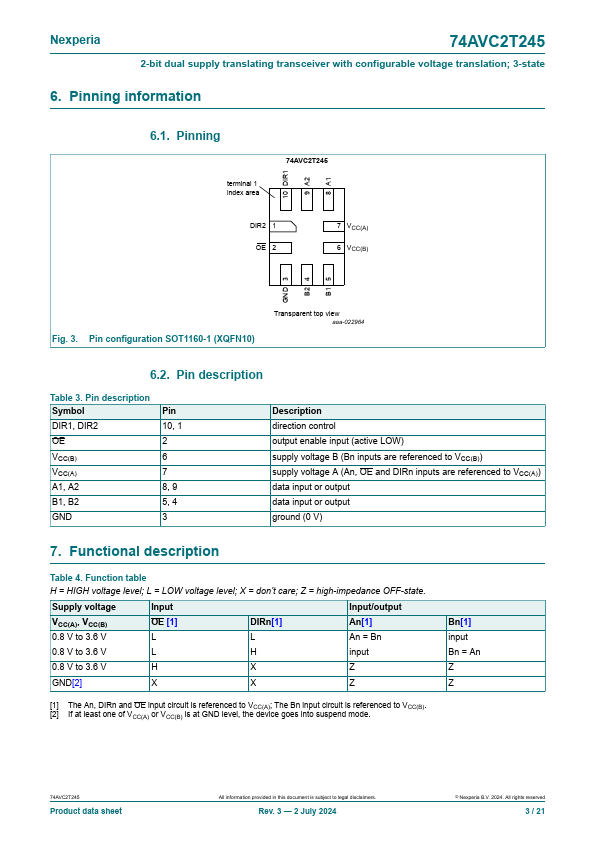

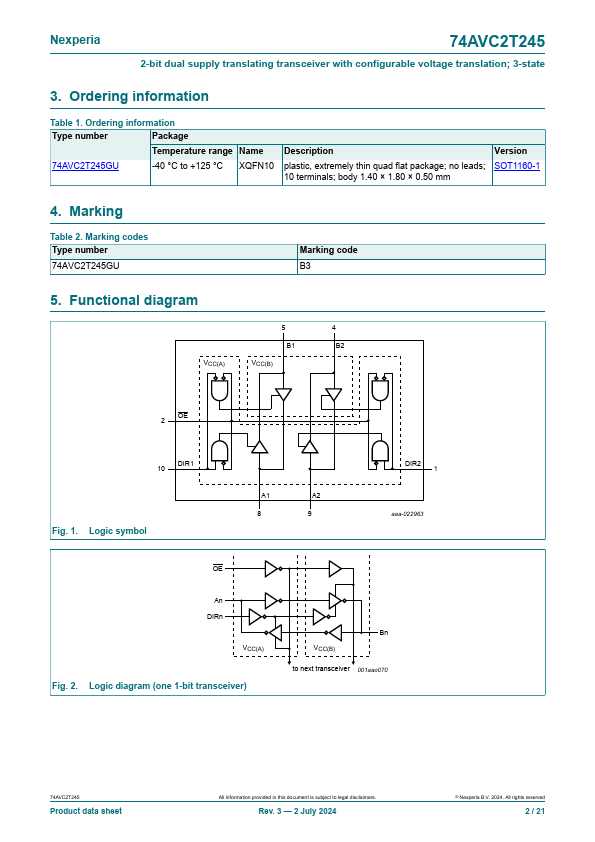

Page 2 of 74AVC2T245 Page 3 of 74AVC2T245

74AVC2T245 Application

  • Applications using IOFF. The IOFF circuitry disables the output, preventing any damaging backflow current through the device when it is powered down
