74AVC2T245-Q100 Datasheet, Transceiver, nexperia

74AVC2T245-Q100 Features

  • Transceiver
  • Automotive product qualification in accordance with AEC-Q100 (Grade 1)
  • Specified from -40 °C to +85 °C and from -40 °C to +125 °C
  • Wide supply voltage range

PDF File Details

Part number:

74AVC2T245-Q100

Manufacturer:

nexperia ↗

File Size:

276.13kb

Download:

📄 Datasheet

Description:

2-bit dual supply translating transceiver. The 74AVC2T245-Q100 is a 2-bit, dual supply transceiver that enables bidirectional level translation. The device can be used as two 1

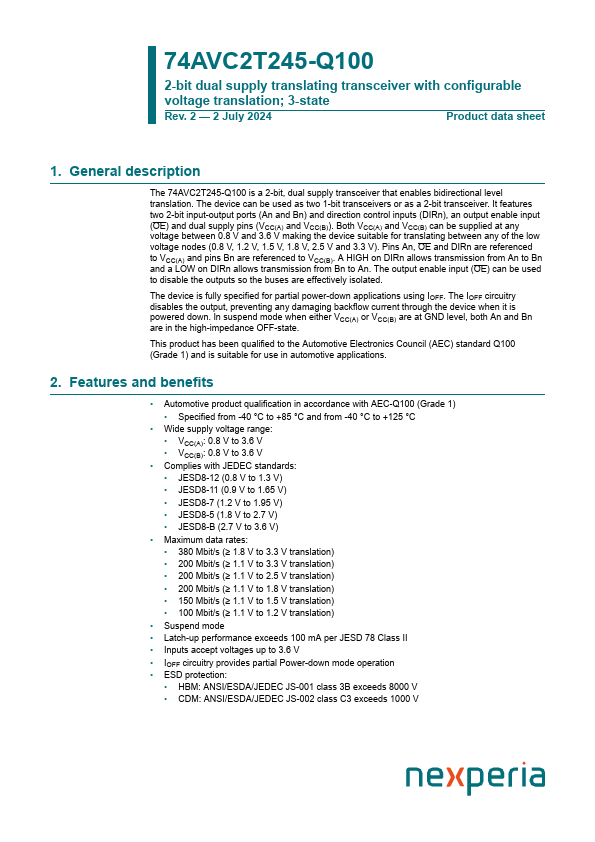

Datasheet Preview: 74AVC2T245-Q100 📥 Download PDF (276.13kb)

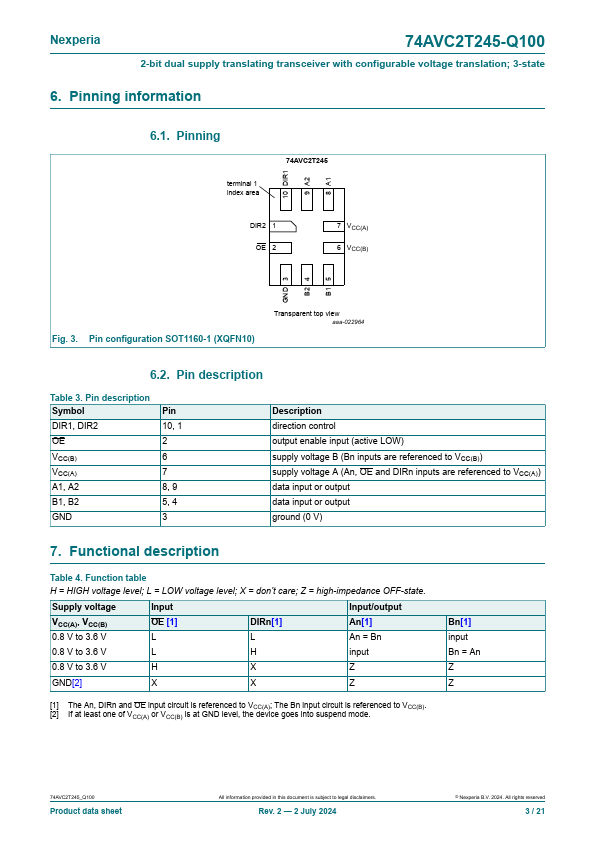

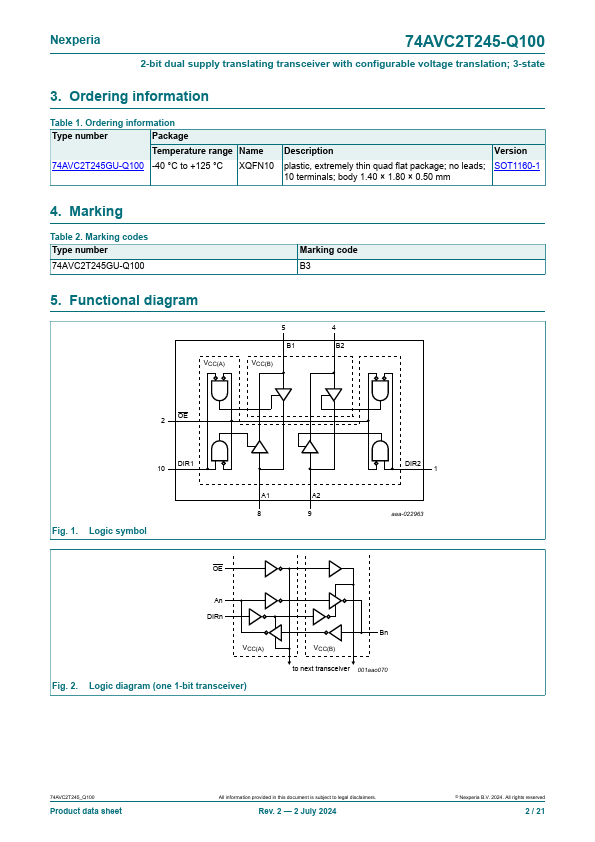

Page 2 of 74AVC2T245-Q100 Page 3 of 74AVC2T245-Q100

74AVC2T245-Q100 Application

  • Applications using IOFF. The IOFF circuitry disables the output, preventing any damaging backflow current through the device when it is powered down
