IP4220CZ6

Dual USB 2.0 integrated ESD protection

IP4220CZ6 Features

* Pb-free, Restriction of Hazardous Substances (RoHS) compliant and free of halogen and antimony (Dark Green compliant)

* ESD protection up to 8 kV contact discharge; IEC 61000-4-2, level 4 compliant

* Four pairs of ultra low input capacitance (CI = 1 pF) ESD rail-to-rail protection dio

IP4220CZ6 General Description

The IP4220CZ6 is designed to protect I/O lines sensitive to capacitive load, such as USB 2.0, ethernet, Digital Video Interface (DVI) and so on, from damage due to ElectroStatic Discharge (ESD). It incorporates four pairs of ultra low capacitance rail-to-rail ESD protection diodes plus a Zener diode.

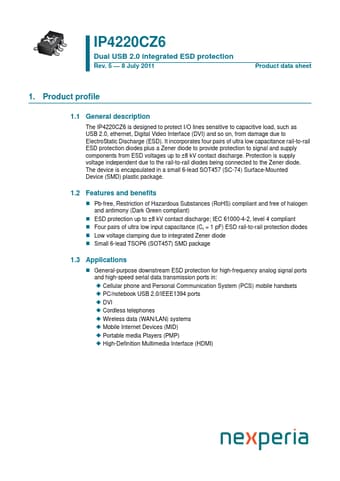

IP4220CZ6 Datasheet (785.26 KB)
