NGW75T65M3DFP Datasheet - nexperia

650V 75A trench field-stop IGBT

NGW75T65M3DFP Features

* Device current is rated at 75 A

* Low conduction and switching losses

* Stable and tight parameters for easy parallel operation

* Maximum junction temperature 175 °C

* Fully rated and soft fast reverse recovery diode

* 5 μs short circuit withstand t

NGW75T65M3DFP General Description

The NGW75T65M3DFP is a robust Insulated-Gate Bipolar Transistor (IGBT) featuring third-generation technology. It combines carrier stored trench-gate and field-stop (FS) structures. The NGW75T65M3DFP is rated to 175 °C with optimized IGBT turn-off losses, and has a shortcircuit withstand time of 5 μs.

NGW75T65M3DFP Datasheet (264.50 KB)

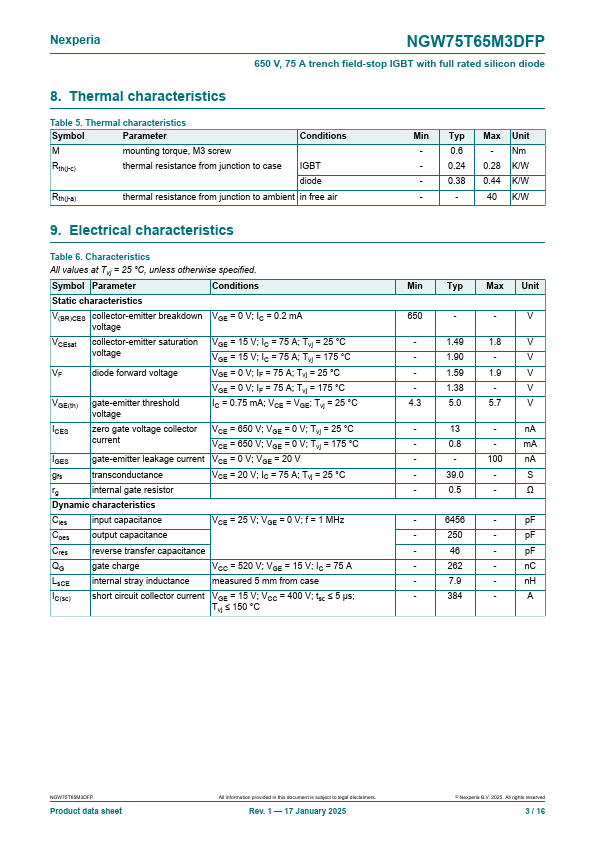

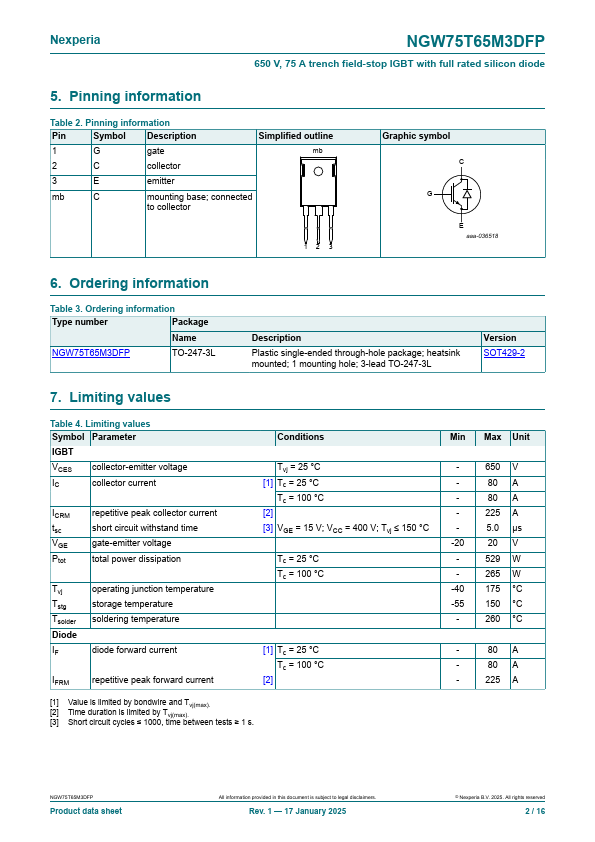

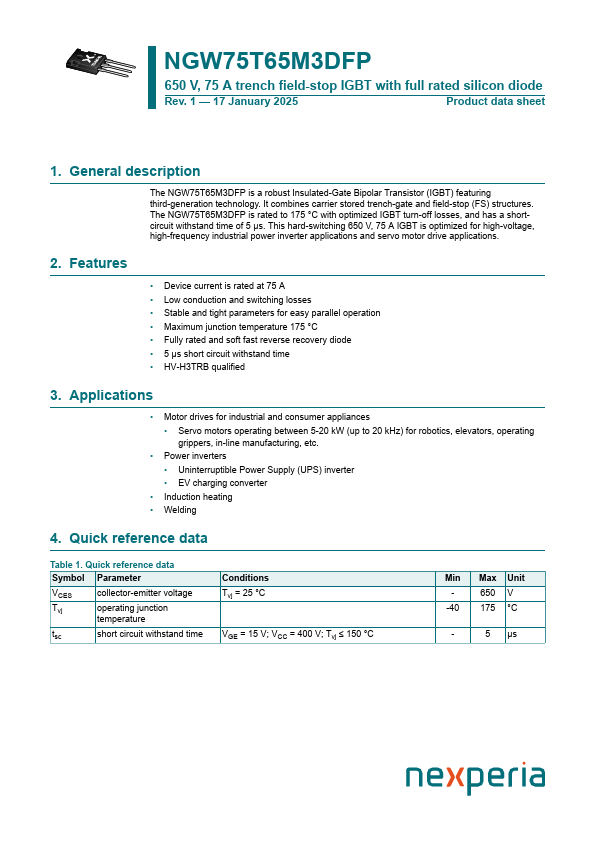

NGW75T65M3DFP Datasheet Preview — Preview of NGW75T65M3DFP PDF

Datasheet Details

Part number:

NGW75T65M3DFP

Manufacturer:

nexperia ↗

File Size:

264.50 KB

Description:

650v 75a trench field-stop igbt.
