NX7002BKW, N-channel MOSFET

NX7002BKW 60 V, single N-channel Trench MOSFET 10 December 2015 Product data sheet 1.General .
N-channel enhancement mode Field-Effect Transistor (FET) in a very small SOT323 (SC-70) Surface-Mounted Device (SMD) plastic package using Trench MOSF.

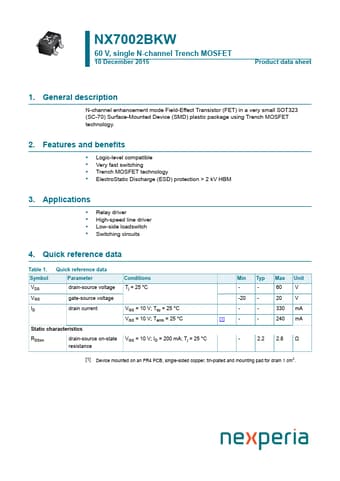

datasheet Preview Page 1 from Datasheet4u.com

NX7002BKW-nexperia.pdf

NX7002BKW Datasheet Preview — Preview of NX7002BKW PDF

Datasheet Details

Part number:

NX7002BKW

Manufacturer:

nexperia ↗

File Size:

721.48 KB

Description:

N-channel MOSFET

Features

* Logic-level compatible
* Very fast switching
* Trench MOSFET technology

Applications

* Relay driver
* High-speed line driver
* Low-side loadswitch
* Switching circuits 4. Quick reference data Table 1. Quick reference data Symbol Parameter Conditions Min Typ Max Unit VDS drain-source voltage Tj = 25 °C - - 60 V VGS gate-source voltage -20 -
