PHPT61002NYC NPN Transistor

PHPT61002NYC Description

PHPT61002NYC 100V, 2 A NPN high power bipolar transistor 9 January 2014 Product data sheet 1.General .
NPN high power bipolar transistor in a SOT669 (LFPAK56) Surface-Mounted Device (SMD) power plastic package.

PHPT61002NYC Features

* High thermal power dissipation capability

PHPT61002NYC Applications

* up to 175 °C
* Reduced Printed Circuit Board (PCB) requirements comparing to transistors in DPAK
* High energy efficiency due to less heat generation 3. Applications
* Load switch
* Power management
* Linear mode voltage regulator
* Backlighting aplli

📥 Download Datasheet

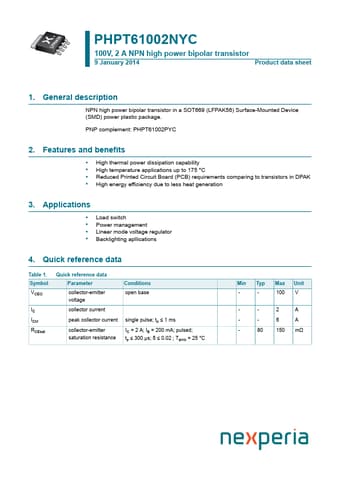

Preview of PHPT61002NYC PDF
datasheet Preview Page 2 datasheet Preview Page 3
