PHPT610035NK - NPN/NPN high power double bipolar transistor

Description

NPN/NPN high power double bipolar transistor in a SOT1205 (LFPAK56D) SurfaceMounted Device (SMD) power plastic package.

Matched version of PHPT610030NK.

PNP/PNP complement: PHPT610035PK.

Features

  • Current gain matching 5% High thermal power dissipation capability Suitable for high temperature.

📥 Download Datasheet

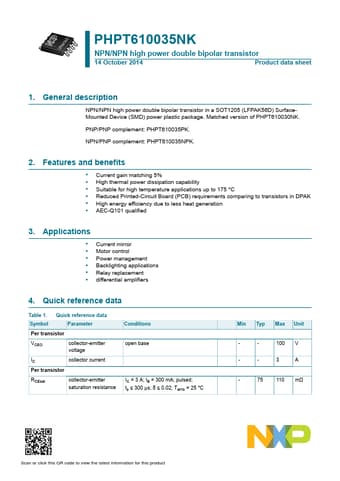

Datasheet preview – PHPT610035NK
