PHPT61003NY, NPN Transistor

PHPT61003NY 100 V, 3 A NPN high power bipolar transistor 11 September 2015 Product data sheet 1.General .
NPN high power bipolar transistor in a SOT669 (LFPAK56) Surface-Mounted Device (SMD) power plastic package.

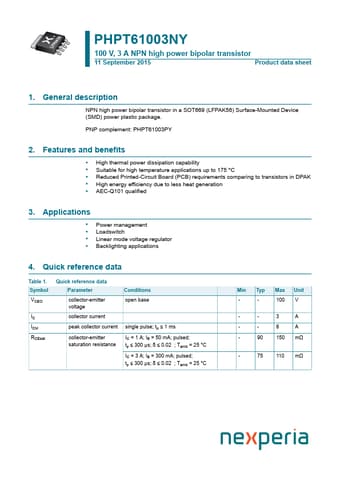

datasheet Preview Page 1 from Datasheet4u.com

PHPT61003NY-nexperia.pdf

PHPT61003NY Datasheet Preview — Preview of PHPT61003NY PDF

Datasheet Details

Part number:

PHPT61003NY

Manufacturer:

nexperia ↗

File Size:

718.75 KB

Description:

NPN Transistor

Features

* High thermal power dissipation capability

Applications

* up to 175 °C
* Reduced Printed-Circuit Board (PCB) requirements comparing to transistors in DPAK
* High energy efficiency due to less heat generation
* AEC-Q101 qualified 3. Applications
* Power management
* Loadswitch
* Linear mode voltage regulator
