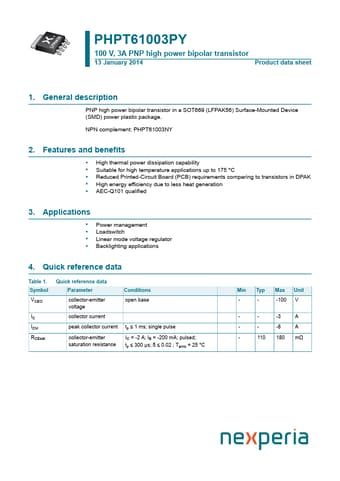

PHPT61003PY Datasheet, Transistor, nexperia

PHPT61003PY Features

• Transistor
• High thermal power dissipation capability
• Suitable for high temperature applications up to 175 °C
• Reduced Printed-Circuit Board (PCB) requirements comparin

PDF File Details

Part number:

PHPT61003PY

Manufacturer:

nexperia ↗

File Size:

707.20kb

Download:

📄 Datasheet

Description:

Pnp transistor. PNP high power bipolar transistor in a SOT669 (LFPAK56) Surface-Mounted Device (SMD) power plastic package. NPN complement: PHPT61003

PHPT61003PY Application

• Applications up to 175 °C
• Reduced Printed-Circuit Board (PCB) requirements comparing to transistors in DPAK
• High energy efficien

TAGS

PHPT61003PY

nexperia
