PHPT61002PYCLH PNP transistor

PHPT61002PYCLH Description

PHPT61002PYCLH 100 V, 2 A PNP high power bipolar transistor 13 July 2017 Product data sheet 1.General .
PNP high power bipolar transistor in a SOT669 (LFPAK56) Surface-Mounted Device (SMD) power plastic package.

PHPT61002PYCLH Features

* High thermal power dissipation capability

PHPT61002PYCLH Applications

* up to 175 °C
* Reduced Printed-Circuit Board (PCB) requirements comparing to transistors in DPAK
* High energy efficiency due to less heat generation 3. Applications
* Power management
* Load switch
* Linear mode voltage regulator
* Backlighting appli

📥 Download Datasheet

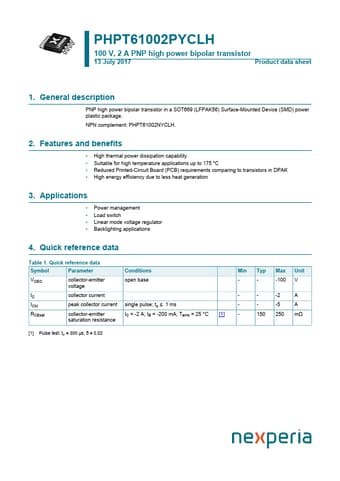

Preview of PHPT61002PYCLH PDF
datasheet Preview Page 2 datasheet Preview Page 3
