PHPT61002PYC PNP Transistor

PHPT61002PYC Description

PHPT61002PYC 100 V, 2 A PNP high power bipolar transistor 10 January 2014 Product data sheet 1.General .
PNP high power bipolar transistor in a SOT669 (LFPAK56) Surface-Mounted Device (SMD) power plastic package.

PHPT61002PYC Features

* High thermal power dissipation capability

PHPT61002PYC Applications

* up to 175 °C
* Reduced Printed-Circuit Board (PCB) requirements comparing to transistors in DPAK
* High energy efficiency due to less heat generation 3. Applications
* Power management
* Load switch
* Linear mode voltage regulator
* Backlighting appli

📥 Download Datasheet

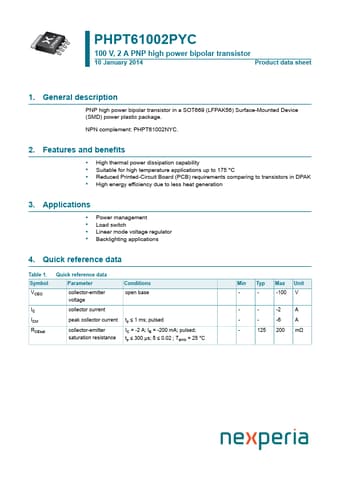

Preview of PHPT61002PYC PDF
datasheet Preview Page 2 datasheet Preview Page 3
