2SC3357 Datasheet | AiT Semiconductor

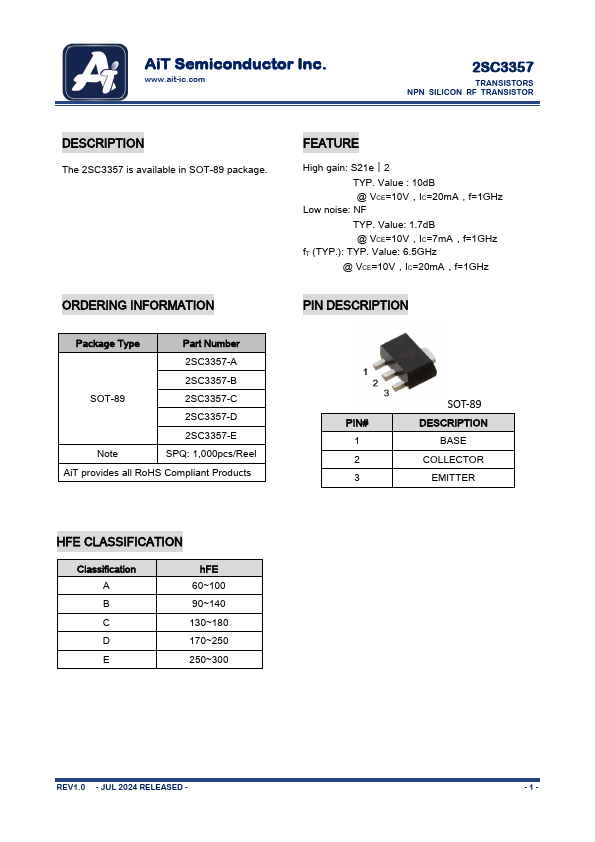

DESCRIPTION The 2SC3357 is available in SOT-89 package. ORDERING INFORMATION Package Type Part Number 2SC3357-A 2SC3357-B SOT-89 2SC3357-C 2SC3357-D 2SC3357-E Note SPQ: 1,000pcs/Reel Ai T provides all Ro HS pliant Products FEATURE High gain: S21e︱2 TYP. Value : 10d B @ VCE=10V，IC=20m A，f=1GHz Low noise: NF TYP. Value: 1.7d B @ VCE=10V，IC=7m A，f=1GHz f T (TYP.): TYP. Value: 6.5GHz @ VCE=10V，IC=20m A，f=1GHz PIN DESCRIPTION PIN# 1 2 3 SOT-89 DESCRIPTION BASE COLLECTOR EMITTER HFE CLASSIFICATION Classification A B C D E h FE 60~100 90~140 130~180 170~250 250~300 REV1.0 - JUL 2024 RELEASED - -1- Ai T Semiconductor Inc. .ait-ic. TRANSISTORS NPN SILICON RF TRANSISTOR ABSOLUTE MAXIMUM RATINGS TA = 25°C, unless otherwise specified VCBO, Collector-Base Breakdown Voltage 20V VCEO, Collector-Emitter Breakdown Voltage 12V VEBO, Emitter-Base Breakdown Voltage 3V IC, Collector...
