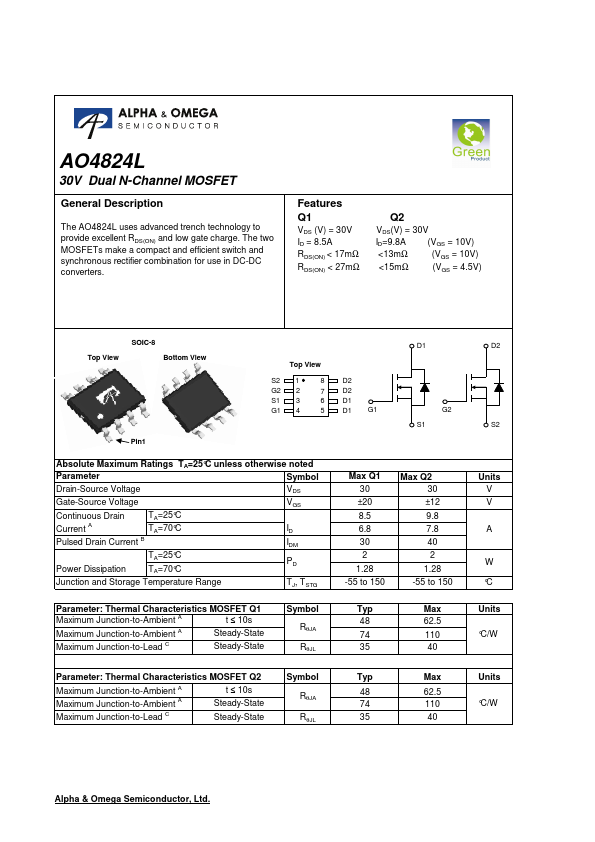

AO4824L - 30V Dual N-Channel MOSFET

General Description

The AO4824L uses advanced trench technology to provide excellent RDS(ON) and low gate charge.

The two MOSFETs make a compact and efficient switch and synchronous rectifier combination for use in DC-DC converters.

Key Features

  • Q1 VDS (V) = 30V ID = 8.5A RDS(ON) < 17mΩ RDS(ON) < 27mΩ Q2 VDS(V) = 30V ID=9.8A (VGS = 10V).

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO4824L Dual N-Channel MOSFET Kexin
AO4824L-HF Dual N-Channel MOSFET Kexin
AO4824 30V Dual N-Channel MOSFET VBsemi
AO4821 Dual P-Channel MOSFET Kexin
AO4821 20V Dual P-Channel MOSFET VBsemi

Other Datasheets by Alpha & Omega Semiconductors

Part Number Description
AO4824 Dual N-Channel MOSFET
AO4821 Dual P-Channel MOSFET
AO4822 30V Dual N-channel MOSFET
AO4822A 30V Dual N-channel MOSFET
AO4826 60V Dual N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
AO4824L 30V Dual N-Channel MOSFET General Description The AO4824L uses advanced trench technology to provide excellent RDS(ON) and low gate charge. The two MOSFETs make a compact and efficient switch and synchronous rectifier combination for use in DC-DC converters. Features Q1 VDS (V) = 30V ID = 8.5A RDS(ON) < 17mΩ RDS(ON) < 27mΩ Q2 VDS(V) = 30V ID=9.8A (VGS = 10V) <13mΩ (VGS = 10V) <15mΩ (VGS = 4.
