2SD1760 - Power Transistor

Galaxy Microelectronics

Key Features

Low VCE(sat). VCE(sat)=0.5V(Typ. ) (IC/IB=2A/0.2A).
Complements the 2SB1184.

2SD1760 power transistor by Galaxy Microelectronics - Datasheet Preview

Datasheet Details

Part number	2SD1760
Manufacturer	Galaxy Microelectronics
File Size	297.83 KB
Description	Power Transistor
Datasheet	2SD1760 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
2SD1760	Silicon NPN Power Transistor	Inchange Semiconductor
2SD1760	Power Transistor	Rohm
2SD1760	NPN Epitaxial Planar Silicon Transistor	SeCoS
2SD1760	NPN Transistors	Kexin
2SD1761	SILICON POWER TRANSISTOR	SavantIC

Other Datasheets by Galaxy Microelectronics

Part Number	Description
2SD1762	Power Transistor
2SD1767	Medium power transistor
2SD1757	Silicon Epitaxial Planar Transistor
2SD1758	Medium Power Transistor
2SD1782	Medium Power Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

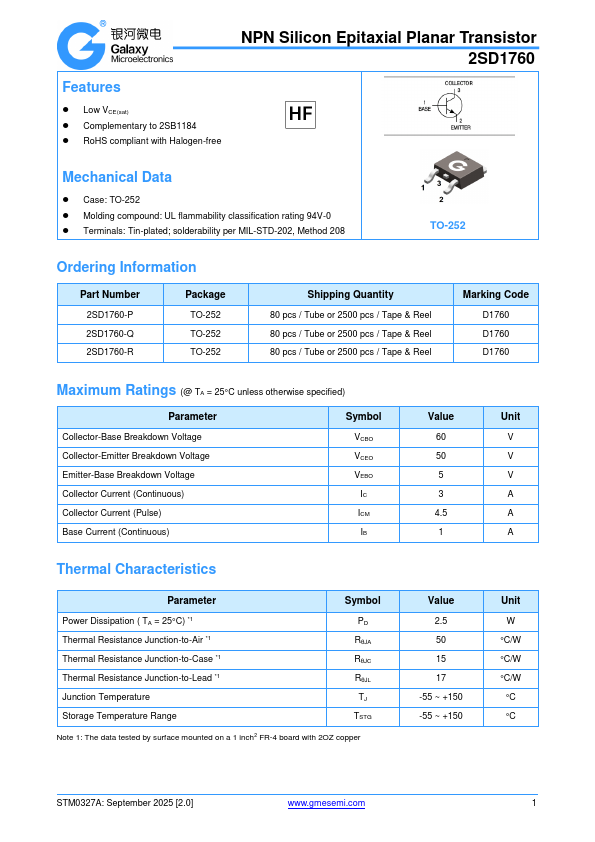

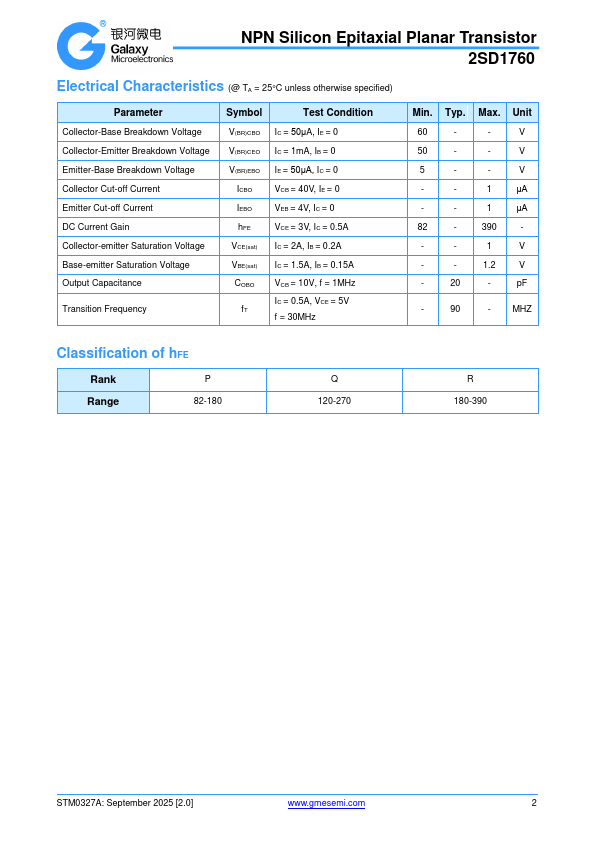

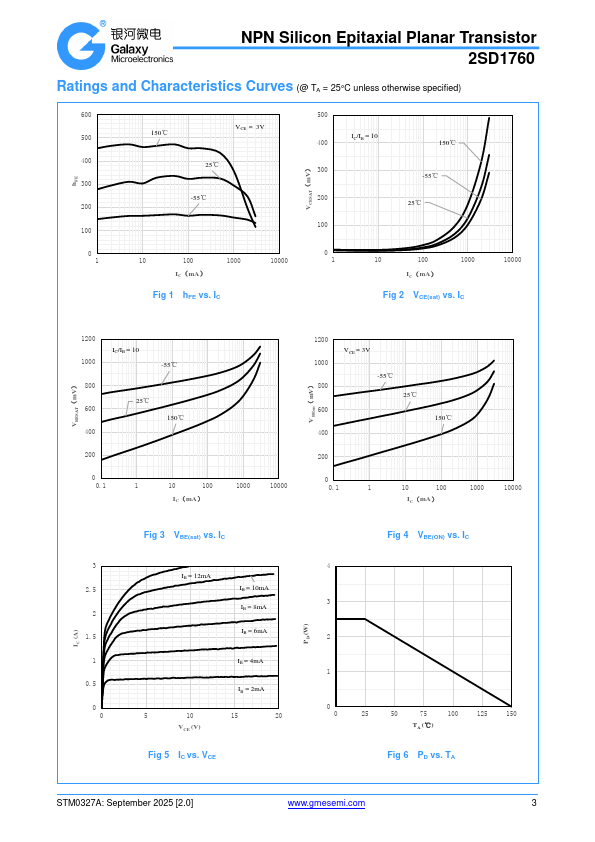

Power Transistor FEATURES  Low VCE(sat). VCE(sat)=0.5V(Typ.) (IC/IB=2A/0.2A)  Complements the 2SB1184. APPLICATIONS  Epitaxial planar type.  NPN silicon transistor. Pb Lead-free Production specification 2SD1760 TO-252 MAXIMUM RATING operating temperature range applies unless otherwise specified Symbol Parameter Value Units VCBO Collector-Base Volage 60 V VCEO Collector-Emitter Voltage 50 V VEBO Emitter-Base Voltage 5V IC Collector Current(DC) 3A ICP Collector Current(Pulse) 4.5 A IB Base Current 1A PC Collector Power Dissipation 1.5 W Tj ,Tstg Junction and Storage temperature range -55 to +150 ℃ W016 Rev.A www.gmesemi.
