PE4244 - SPDT UltraCMOS RF Switch

Datasheet Summary

Description

The PE4244 UltraCMOS™ RF Switch is designed to cover a broad range of applications from DC to 3.0 GHz.

This switch integrates on-board CMOS control logic with a low voltage CMOS compatible control input.

Features

  • Single +3.0-volt Power Supply Low Insertion loss: 0.60 dB up to 2.0 GHz High isolation of 39 dB at 1.0 GHz, 29 dB at 2.0 GHz Typical 1 dB compression of +27 dBm Single-pin CMOS logic control Packaged in 8-lead MSOP Figure 2. Package Type 8-lead MSOP RF1 RF2 CMOS Control Driver CTRL Table 1. Electrical Specifications @ +25 °C, VDD = 3 V (ZS = ZL = 50 Ω) Parameter Operation Frequency Insertion Loss Isolation.
  • RFC to RF1/RF.

📥 Download Datasheet

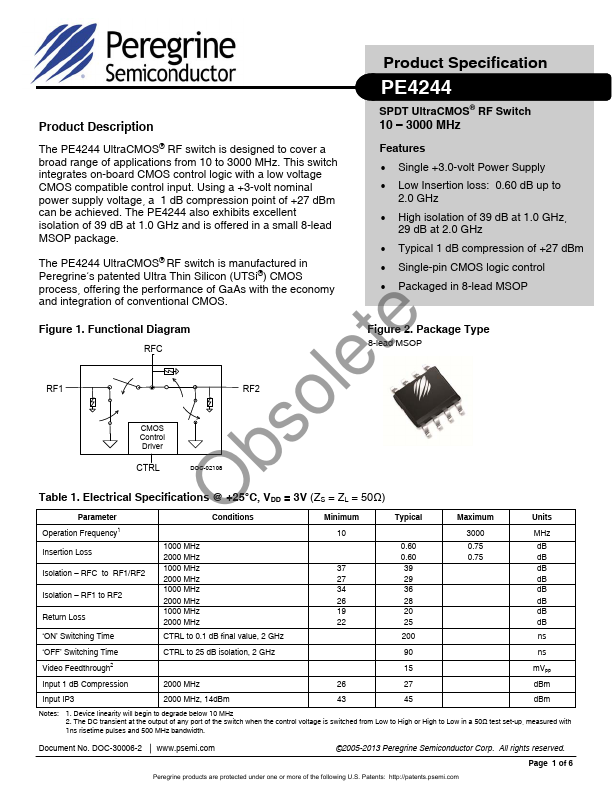

Datasheet preview – PE4244

Datasheet Details

Part number PE4244
Manufacturer Peregrine Semiconductor
File Size 276.54 KB
Description SPDT UltraCMOS RF Switch
Datasheet download datasheet PE4244 Datasheet

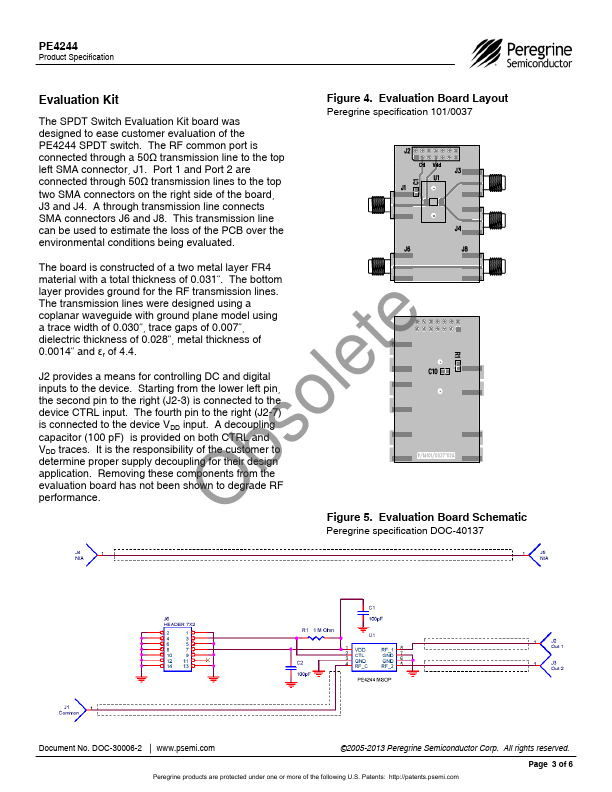

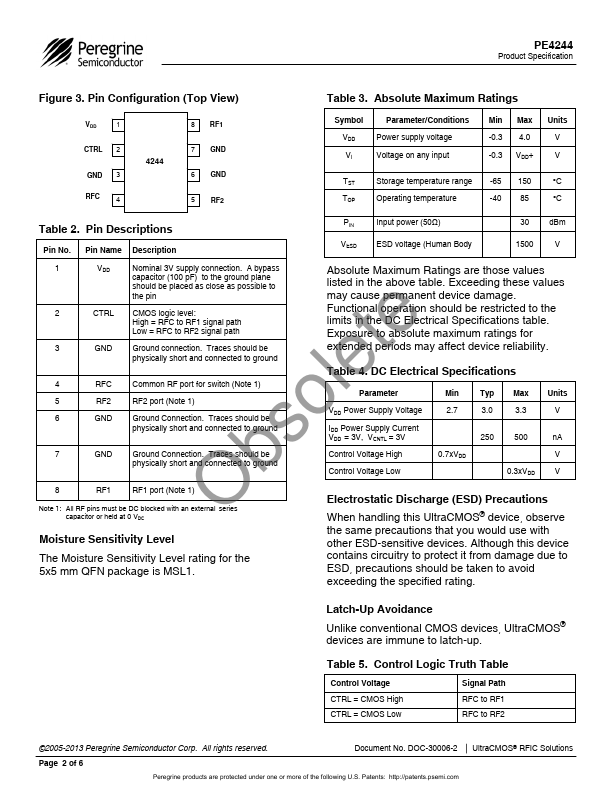

Additional preview pages of the PE4244 datasheet.

📁 Similar Datasheet

  • PE42445 - High Isolation UltraCMOS SP4T RF Switch (pSemi)
  • PE42482 - SP8T RF Switch (pSemi)
  • PE42512 - RF Switch (pSemi)
  • PE42726 - SPDT RF Switch (pSemi)
  • PE4290X - (PE-xxxxX) General Purpose Transformers (Pulse)
  • PE4005 - RF CONNECTOR (Pasternack Enterprises)
  • PE4013S - N-Channel Enhancement Mode Power MOSFET (ChipSourceTek)
  • PE4013SA - N-Channel Enhancement Mode Power MOSFET (ChipSourceTek)
  • PE4025KC - N and P Channel Enhancement Mode Power MOSFET (ChipSourceTek)
  • PE40F - THYRISTOR MODULE (SanRex Corporation)
Other Datasheets by Peregrine Semiconductor

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com Product Specification PE4244 SPDT UltraCMOS™ RF Switch Product Description The PE4244 UltraCMOS™ RF Switch is designed to cover a broad range of applications from DC to 3.0 GHz. This switch integrates on-board CMOS control logic with a low voltage CMOS compatible control input. Using a +3-volt nominal power supply voltage, a 1 dB compression point of +27 dBm can be achieved. The PE4244 also exhibits excellent isolation of 39 dB at 1.0 GHz and is offered in a small 8-lead MSOP package. The PE4244 UltraCMOS™ RF Switch is manufactured in Peregrine’s patented Ultra Thin Silicon (UTSi®) CMOS process, offering the performance of GaAs with the economy and integration of conventional CMOS. Figure 1. Functional Diagram RFC Features • • • • • • Single +3.
