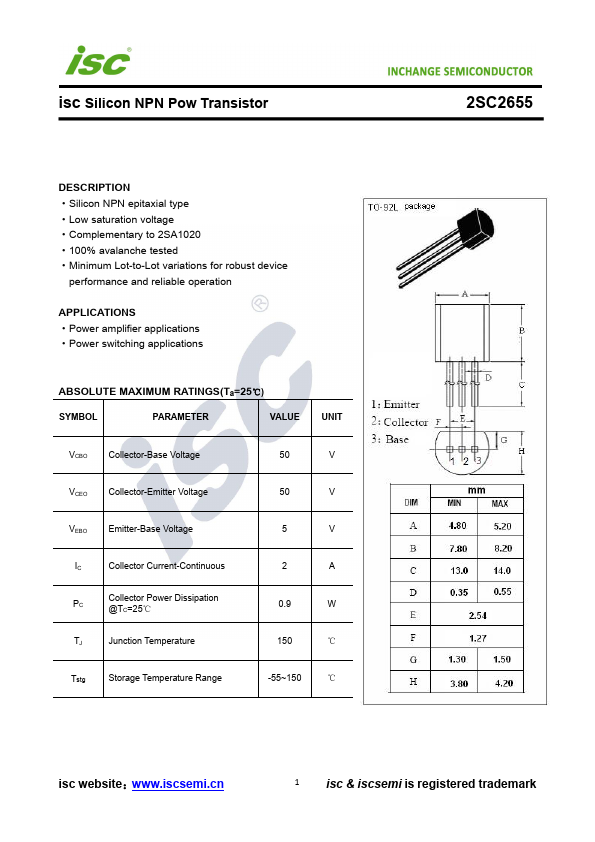

isc Silicon NPN Pow Transistor
DESCRIPTION
·Silicon NPN epitaxial type
·Low saturation voltage
·Complementary to 2SA1020
·100% avalanche tested
·Minimum Lot-to-Lot variations for robust device
performance and reliable operation
APPLICATIONS
·Power amplifier applications
·Power switching applications
ABSOLUTE MAXIMUM RATINGS(Ta=25)
SYMBOL
PARAMETER
VALUE
UNIT
VCBO Collector-Base Voltage
50
V
VCEO Collector-Emitter Voltage
50
V
VEBO Emitter-Base Voltage
5
V
IC
Collector Current-Continuous
PC
Collector Power Dissipation
@TC=25
TJ
Junction Temperature
2
A
0.9
W
150
Tstg
Storage Temperature Range
-55~150
2SC2655
isc websitewww.iscsemi.cn
1 isc & iscsemi is registered trademark




INCHANGE

2SC2655 Datasheet Preview

2SC2655 Datasheet

NPN Transistor

No Preview Available !

isc Silicon NPN Pow Transistor

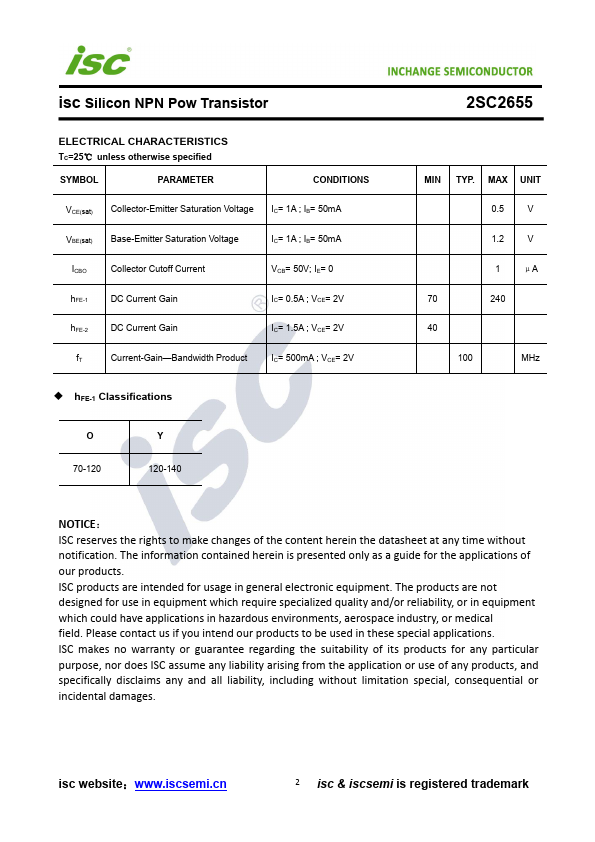

ELECTRICAL CHARACTERISTICS
TC=25unless otherwise specified
SYMBOL
PARAMETER
CONDITIONS
VCE(sat) Collector-Emitter Saturation Voltage IC= 1A ; IB= 50mA
VBE(sat) Base-Emitter Saturation Voltage
IC= 1A ; IB= 50mA
ICBO
Collector Cutoff Current
VCB= 50V; IE= 0
hFE-1
DC Current Gain
IC= 0.5A ; VCE= 2V
hFE-2
DC Current Gain
IC= 1.5A ; VCE= 2V
fT
Current-Gain—Bandwidth Product
IC= 500mA ; VCE= 2V
hFE-1 Classifications
O
70-120
Y
120-140
2SC2655
MIN TYP. MAX UNIT
0.5
V
1.2
V
1 μA
70
240
40
100
MHz
NOTICE
ISC reserves the rights to make changes of the content herein the datasheet at any time without
notification. The information contained herein is presented only as a guide for the applications of
our products.
ISC products are intended for usage in general electronic equipment. The products are not
designed for use in equipment which require specialized quality and/or reliability, or in equipment
which could have applications in hazardous environments, aerospace industry, or medical
field. Please contact us if you intend our products to be used in these special applications.
ISC makes no warranty or guarantee regarding the suitability of its products for any particular
purpose, nor does ISC assume any liability arising from the application or use of any products, and
specifically disclaims any and all liability, including without limitation special, consequential or
incidental damages.
isc websitewww.iscsemi.cn
2 isc & iscsemi is registered trademark



Part Number 2SC2655
Description NPN Transistor
Maker INCHANGE
Total Page 2 Pages
PDF Download

2SC2655 Datasheet PDF
