MTV016 - Enhanced On-Screen-Display Controller

Description

MTV016 is designed for use in monitor applications to display the built-in characters or symbols onto a monitor screen.

The display operation occurs by transferring data and control information in the microcontroller to RAM through a serial data interface.

Features

  • MTV016 Enhanced On-Screen-Display Controller Horizontal SYNC input up to 100 KHz. On-chip PLL circuitry up to a 90 MHz pixel rate for multi-SYNC operation. Programmable horizontal resolutions up to 1524 dots per display row. 538-byte display registers to control full screen display. Full screen di.

📥 Download Datasheet

Datasheet Details

Part number MTV016
Manufacturer Myson
File Size 104.71 KB
Description Enhanced On-Screen-Display Controller
Datasheet download datasheet MTV016 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MTV-2216WD LCD TVs Manual ETC
MTV10N100E TMOS POWER FET 10 AMPERES 1000 VOLTS Motorola
MTV16N50E TMOS POWER FET 16 AMPERES 500 VOLTS Motorola
MTV16N50E Power Field Effect Transistor ON Semiconductor
MTV20N50E TMOS POWER FET Motorola

Other Datasheets by Myson

Part Number Description
MTV012A 8051 Embedded CRT Monitor Controller Mask Version
MTV012E 8051 Embedded CRT Monitor Controller OTP Version
MTV018 Super On-Screen-Display
MTV003 Microprocessor Compatible Monitor Controller
MTV003N Microprocessor Compatible Monitor Controller

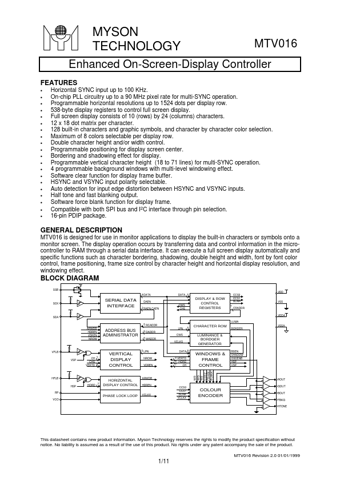

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
MYSON TECHNOLOGY FEATURES • • • • • • • • • • • • • • • • • • • • MTV016 Enhanced On-Screen-Display Controller Horizontal SYNC input up to 100 KHz. On-chip PLL circuitry up to a 90 MHz pixel rate for multi-SYNC operation. Programmable horizontal resolutions up to 1524 dots per display row. 538-byte display registers to control full screen display. Full screen display consists of 10 (rows) by 24 (columns) characters. 12 x 18 dot matrix per character. 128 built-in characters and graphic symbols, and character by character color selection. Maximum of 8 colors selectable per display row. Double character height and/or width control. Programmable positioning for display screen center. Bordering and shadowing effect for display.
