FDC6306P Datasheet - onsemi

FDC6306P, P-Channel MOSFET

These P *Channel 2.5 V specified MOSFETs are produced using onsemi’s advanced PowerTrench process that has been especially tailored to minimize on *state resistance and yet maintain low gate charge for superior switching performance. These devices have been designed to offer exceptiona.

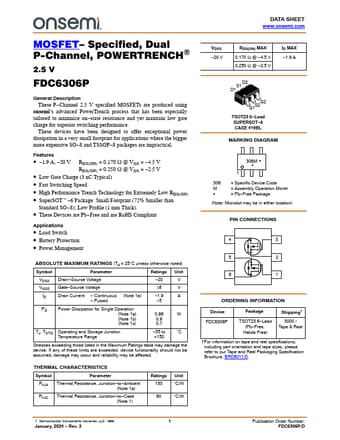

Datasheet Preview Page 1

FDC6306P-onsemi.pdf

Preview of FDC6306P PDF
FDC6306P Datasheet Preview Page 2 FDC6306P Datasheet Preview Page 3

Datasheet Details

Part number:

FDC6306P

Manufacturer:

onsemi

File Size:

324.88 KB

Description:

P-Channel MOSFET

FDC6306P Features

* 1.9 A,

* 20 V. RDS(ON) = 0.170 W @ VGS =

* 4.5 V RDS(ON) = 0.250 W @ VGS =

* 2.5 V

* Low Gate Charge (3 nC Typical)

* Fast Switching Speed

* High Performance Trench Technology for Extremely Low RDS(ON)

* SuperSOTt

* 6 Pack
