AWT6278 Datasheet - ANADIGICS

AWT6278 - HELP3 PCS/WCDMA 3.4 V/29.5 dBm HSPA Linear Power Amplifier Module

current, increase handset talk and standby time.

The self-contained 4 mm x 4 mm x 1 mm surface mount package incorporates matching networks optimized for output power, efficiency, and linearity in a 50 Ω system.

GND at slug (pad) VBATT 1 RFIN 2 10 VCC 9 8 Bias Control Voltage Regulation GND RFOUT

AWT6278 Features

* InGaP HBT Technology

* High Efficiency: 41 % @ POUT = +29.5 dBm 21 % @ POUT = +16 dBm 9 % @ POUT = +8 dBm

* Low Quiescent Current: 8 mA www.DataSheet4U.com

* Low Leakage Current in Shutdown Mode:

AWT6278_ANADIGICS.pdf

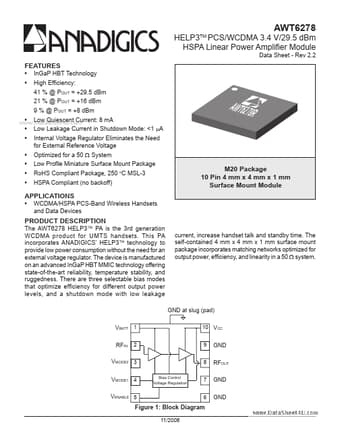

Preview of AWT6278 PDF
AWT6278 Datasheet Preview Page 2 AWT6278 Datasheet Preview Page 3

Datasheet Details

Part number:

AWT6278

Manufacturer:

ANADIGICS

File Size:

441.73 KB

Description:

Help3 pcs/wcdma 3.4 v/29.5 dbm hspa linear power amplifier module.
