ATF1502ASL

High-performance EEPROM

ATF1502ASL Features

* High-density, High-performance, Electrically-erasable Complex Programmable Logic Device ̶ 32 Macrocells ̶ 5 Product Terms per Macrocell, Expandable up to 40 per Macrocell ̶ 44 Pins ̶ 7.5ns Maximum Pin-to-pin Delay ̶ Registered Operation up to 125MHz ̶ Enhanced Routing Resources

* In-System

ATF1502ASL General Description

The Atmel® ATF1502AS(L) is a high-performance, high-density Complex Programmable Logic Device (CPLD) which utilizes the Atmel proven electrically-erasable technology. With 32 logic macrocells and up to 36 inputs, it easily integrates logic from several TTL, SSI, MSI, LSI, and classic PLDs. The ATF15.

ATF1502ASL Datasheet (945.49 KB)

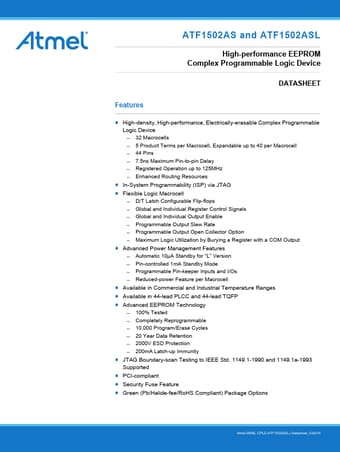

Preview of ATF1502ASL PDF

Datasheet Details

Part number:

ATF1502ASL

Manufacturer:

ATMEL

File Size:

945.49 KB

Description:

High-performance eeprom.
