AP10A035MT - DUAL N-CHANNEL ENHANCEMENT MODE POWER MOSFET

AP10A035MT Description

Advanced Power Electronics Corp.▼ Simple Drive Requirement ▼ Fast Switching Characteristic ▼ RoHS Compliant & Halogen-Free AP10A035MT Halogen-Free P.
AP10A035 series are from Advanced Power innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switchin.

AP10A035MT Applications

* PMPAK ® 5x6 dual pad provide superior thermal performance and is design for surface mount applications. S1 G1 S2 G2 S1 G1 S2 G2 D1 D1 D2 D2 PMPAK® 5x6 Absolute Maximum Ratings@Tj=25o. C(unless otherwise specified) Symbol Parameter Rating Units VDS Drain-Source Voltage 100 V VGS Gate-Sou

📥 Download Datasheet

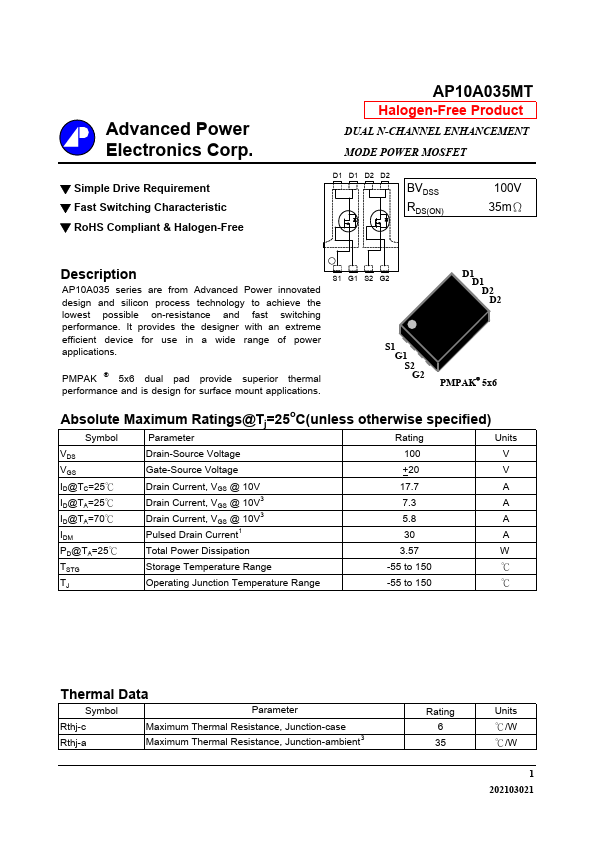

Preview of AP10A035MT PDF

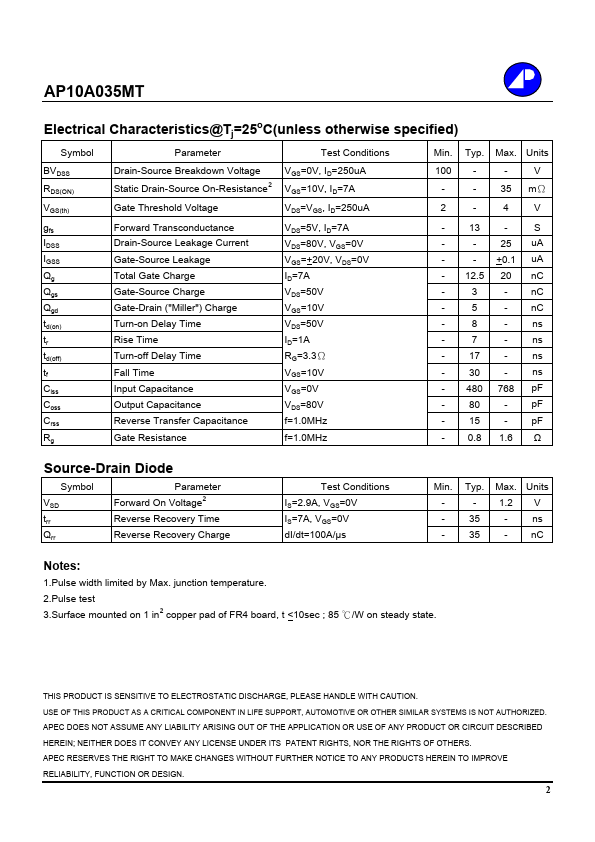

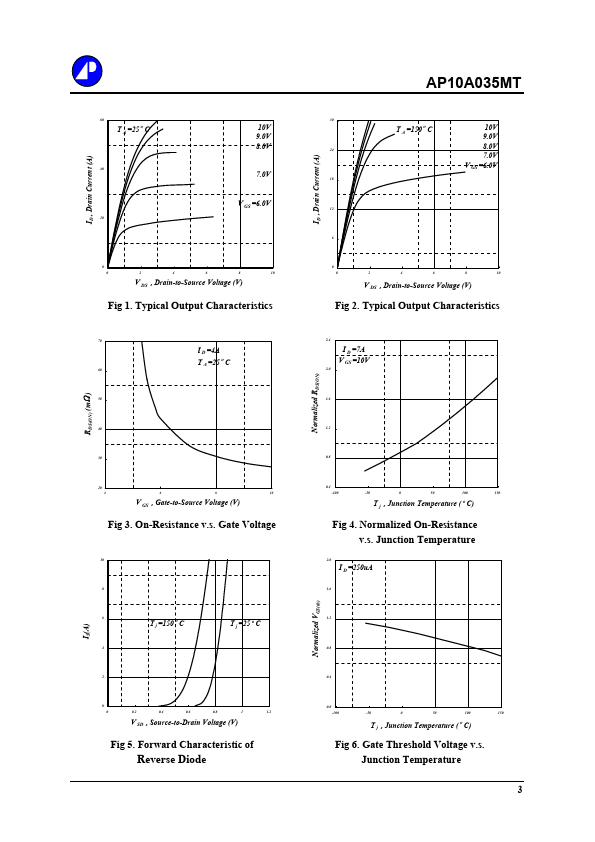

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AP10A035MT
Manufacturer
Advanced Power Electronics
File Size
232.68 KB
Datasheet
AP10A035MT-AdvancedPowerElectronics.pdf
Description
DUAL N-CHANNEL ENHANCEMENT MODE POWER MOSFET
