ALN3300 - Internally Matched LNA Module

Product Overview

Advanced Semiconductor

Datasheet Details

Part number	ALN3300
Manufacturer	Advanced Semiconductor
File Size	426.62 KB
Description	Internally Matched LNA Module
Datasheet	ALN3300 Datasheet

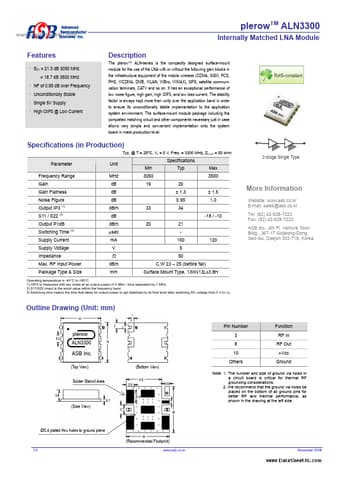

Additional preview pages of the ALN3300 datasheet.

Product details

Description

The plerowTM ALN-series is the compactly designed surface-mount module for the use of the LNA with or without the following gain blocks in the infrastructure equipment of the mobile wireless (CDMA, GSM, PCS, PHS, WCDMA, DMB, WLAN, WiBro, WiMAX), GPS, satellite communication terminals, CATV and so on.

Features

S21 = 21.3 dB 3050 MHz = 18.7 dB 3500 MHz.
NF of 0.95 dB over Frequency.
Unconditionally Stable.
Single 5V Supply.
High OIP3 @ Low Current Specifications (in Production) Typ. @ T = 25°C, Vs = 5 V, Freq. = 3300 MHz, Zo. sys = 50 ohm Parameter Frequency Range Gain Gain Flatness Noise Figure Output IP3 S11 / S22 (1) (2) Unit MHz dB dB dB dBm dB dBm Specifications Min 3050 19 20 ± 1.3 0.95 33 20 34 -18 / -10 21 100 5 50 C. W 23 ~ 25 (before fail) Surface Mount Type, 13Wx1.
