ALN3687 Datasheet - Advanced Semiconductor

ALN3687 - Internally Matched LNA Module

The plerowTM ALN-series is the compactly designed surface-mount module for the use of the LNA with or without the following gain blocks in the infrastructure equipment of the mobile wireless (CDMA, GSM, PCS, PHS, WCDMA, DMB, WLAN, WiBro, WiMAX), GPS, satellite communication terminals, CATV and so on

ALN3687 Features

* S21 =18.2 dB 3680 MHz =17.8 dB 3695 MHz

* NF of 1.0 dB over Frequency

* Unconditionally Stable

* Single 5V Supply

* High OIP3 @ Low Current Specifications (in Production) Typ. @ T = 25°C, Vs = 5 V, Freq. = 3687 MHz, Zo.sys = 50 ohm Parameter Frequency Range Gain Gain Flatness

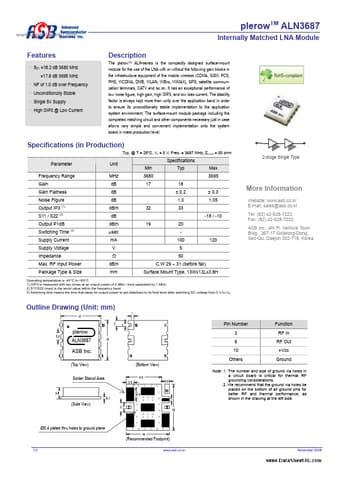

ALN3687_AdvancedSemiconductor.pdf
