ALN3500 Internally Matched LNA Module

ALN3500 Description

plerowTM ALN3500 www.DataSheet4U.com Internally Matched LNA Module .
The plerowTM ALN-series is the compactly designed surface-mount module for the use of the LNA with or without the following gain blocks in the infrast.

ALN3500 Features

* S21 = 19.2 dB @ 3400 MHz = 18.8 dB @ 3600 MHz
* NF of 1.1 dB over Frequency
* Unconditionally Stable
* Single 5V Supply
* High OIP3 @ Low Current Specifications (in Production) Typ. @ T = 25°C, Vs = 5 V, Freq. = 3500 MHz, Zo. sys = 50 ohm Parameter Frequency Range Gain Gain Fl

📥 Download Datasheet

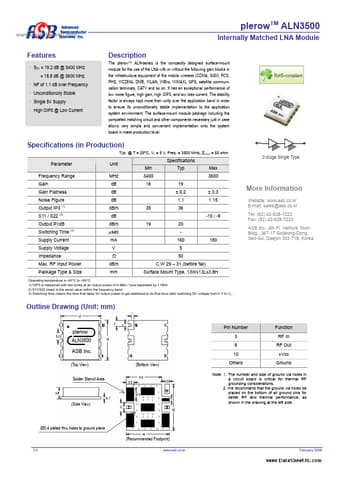

Preview of ALN3500 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ALN3500
Manufacturer
Advanced Semiconductor
File Size
368.82 KB
Datasheet
ALN3500_AdvancedSemiconductor.pdf
Description
Internally Matched LNA Module
