VFT5-28SL VHF POWER MOSFET N-Channel Enhancement Mode

VFT5-28SL Description

VFT5-28SL VHF POWER MOSFET N-Channel Enhancement Mode .
The VFT5-28SL is Designed for Class A and AB VHF Power Amplifiers operating at frequencies up to 250 MHz.

VFT5-28SL Features

* PG = 21 dB Typical at 175 MHz
* η D = 50% Typical at POUT = 5 Watts
* Omnigold™ Metalization System S ØB D S G ØC MAXIMUM RATINGS ID VDSS VDGR VGS PDISS TJ T STG θ JC 1.25 A 60 V 60 V ±40 V 17.5 W @ TC = 25 OC -65 OC to +200 OC -65 C to +150 C 10 OC/W O O DIM A B C D E

📥 Download Datasheet

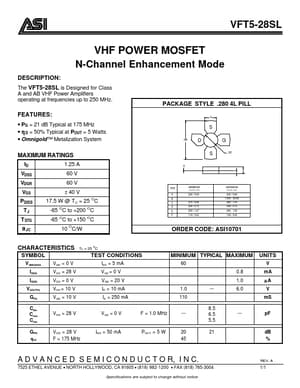

Preview of VFT5-28SL PDF

Datasheet Details

Part number
VFT5-28SL
Manufacturer
Advanced Semiconductor
File Size
17.29 KB
Datasheet
VFT5-28SL_AdvancedSemiconductor.pdf
Description
VHF POWER MOSFET N-Channel Enhancement Mode
