VFT5200 Trench MOS Barrier Schottky Rectifier

VFT5200 Description

www.DataSheet.co.kr New Product VT5200, VFT5200, VBT5200, VIT5200 Vishay General Semiconductor Trench MOS Barrier Schottky Rectifier Ultra Low VF =.

VFT5200 Features

* ITO-220AC
* Trench MOS Schottky technology
* Low forward voltage drop, low power losses
* High efficiency operation
* Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C (for TO-263AB package) 2 VT5200 PIN 1 PIN 2 CASE 2 1 VFT5200 PIN 1 PIN 2
* Sol

VFT5200 Applications

* For use in high frequency converters, switching power supplies, freewheeling diodes, OR-ing diode, dc-to-dc converters and reverse battery protection. TO-263AB K K TO-262AA MECHANICAL DATA A NC VBT5200 NC A K HEATSINK A K NC VIT5200 NC A K HEATSINK Case: TO-220AC, ITO-220AC, TO-263AB and TO-262

📥 Download Datasheet

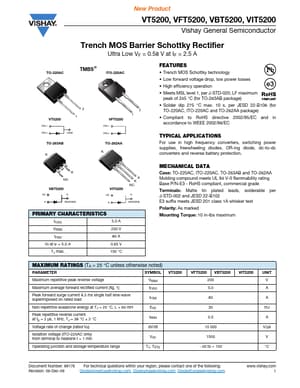

Preview of VFT5200 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VFT5200
Manufacturer
Vishay ↗
File Size
190.65 KB
Datasheet
VFT5200_Vishay.pdf
Description
Trench MOS Barrier Schottky Rectifier
