AO3400 - 30V N-Channel MOSFET

Datasheet Summary

Description

The AO3400 combines advanced trench MOSFET technology with a low resistance package to provide extremely low RDS(ON).

This device is suitable for use as a load switch or in PWM applications.

📥 Download Datasheet

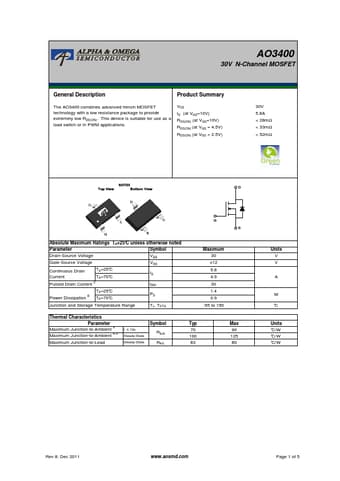

Datasheet preview – AO3400

Datasheet Details

Part number AO3400
Manufacturer Alpha & Omega Semiconductors
File Size 468.38 KB
Description 30V N-Channel MOSFET
Datasheet download datasheet AO3400 Datasheet
Additional preview pages of the AO3400 datasheet.
