BLF8G20LS-160V Datasheet - Ampleon

Power LDMOS transistor

BLF8G20LS-160V Features

* Excellent ruggedness

* High efficiency

* Low thermal resistance providing excellent thermal stability

* Designed for broadband operation

* Lower output capacitance for improved performance in Doherty applications

* Designed for low memory effects providing excellent pre-dis

BLF8G20LS-160V General Description

160 W LDMOS power transistor with improved video bandwidth for base station applications at frequencies from 1800 MHz to 2000 MHz. Table 1. Typical performance Typical RF performance at Tcase = 25 C in a common source class-AB production test circuit. Test signal f IDq VDS PL(AV) Gp D ACPR .

BLF8G20LS-160V Datasheet (352.13 KB)

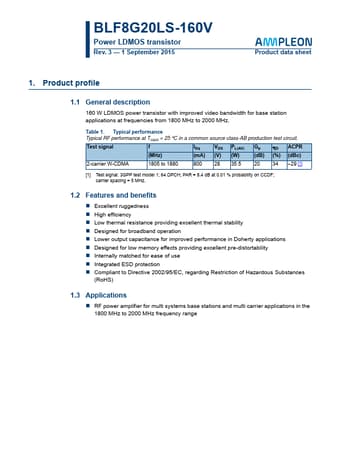

Preview of BLF8G20LS-160V PDF

Datasheet Details

Part number:

BLF8G20LS-160V

Manufacturer:

Ampleon

File Size:

352.13 KB

Description:

Power ldmos transistor.
