BLF8G22LS-140 Datasheet - Ampleon

Power LDMOS transistor

BLF8G22LS-140 Features

* Excellent ruggedness

* High efficiency

* Low Rth providing excellent thermal stability

* Designed for broadband operation (2000 MHz to 2200 MHz)

* Lower output capacitance for improved performance in Doherty applications

* Designed for low memory effects providing excellent

BLF8G22LS-140 General Description

140 W LDMOS power transistor for base station applications at frequencies from 2000 MHz to 2200 MHz. Table 1. Typical performance Typical RF performance at Tcase = 25 C in a common source class-AB production test circuit. Test signal f IDq VDS PL(AV) Gp D ACPR (MHz) (mA) (V) (W) (dB) (%).

BLF8G22LS-140 Datasheet (342.91 KB)

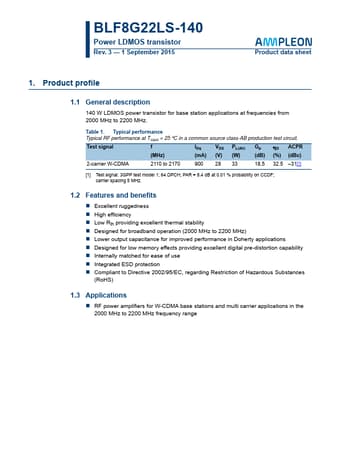

Preview of BLF8G22LS-140 PDF

Datasheet Details

Part number:

BLF8G22LS-140

Manufacturer:

Ampleon

File Size:

342.91 KB

Description:

Power ldmos transistor.
