GaAs MMIC SP4T NON-REFLECTIVE SWITCH

HMC344 General Description

The HMC344 is a broadband non-reflective GaAs MESFET SP4T switch chip. Covering DC to 8 GHz, this switch offers high isolation, low insertion loss, and a compact form factor. This switch also includes an on board binary decoder circuit which reduces the number of required logic control lines to two..

HMC344 Datasheet (255.89 KB)

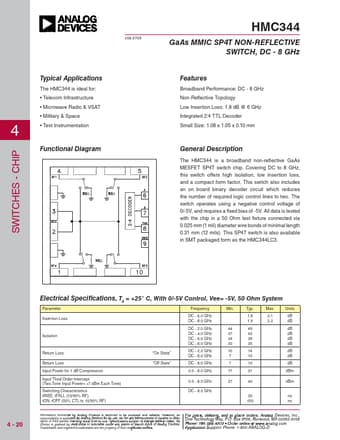

HMC344 Datasheet Preview — Preview of HMC344 PDF

Datasheet Details

Part number:

HMC344

Manufacturer:

Analog Devices ↗

File Size:

255.89 KB

Description:

Gaas mmic sp4t non-reflective switch.
SWITCHES - CHIP v06.0709 Typical Applications The HMC344 is ideal for: Telecom Infrastructure Microwave Radio & VSAT
