HMC344LC3 Datasheet, Switch, Analog Devices

HMC344LC3 Features

  • Switch Broadband Performance: DC - 8 GHz Integrated 2:4 TTL Decoder High Isolation: 40 dB@ 6 GHz Low Insertion Loss: 2 dB@ 6 GHz Non-Reflective Topology General Description The HMC344LC3 is a

PDF File Details

Part number:

HMC344LC3

Manufacturer:

Analog Devices ↗

File Size:

334.87kb

Download:

📄 Datasheet

Description:

Gaas mmic sp4t non-reflective switch. The HMC344LC3 is a broadband non-reflective GaAs MESFET SP4T switch in a ceramic 3x3 mm leadless surface mount package. Covering DC t

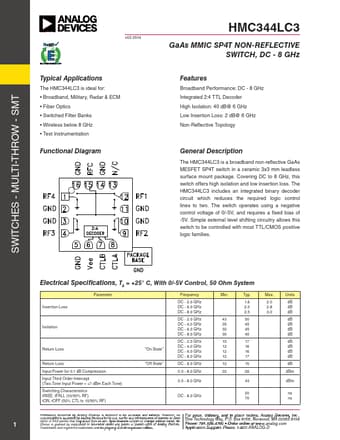

Datasheet Preview: HMC344LC3 📥 Download PDF (334.87kb)
Page 2 of HMC344LC3 Page 3 of HMC344LC3

HMC344LC3 Application

  • Applications The HMC344LC3 is ideal for:
  • Broadband, Military, Radar & ECM
  • Fiber Optics
  • Switched Filter Banks
